Billet Gen 1/Gen 2 Coyote VCT Valve Covers Clear Anodizing

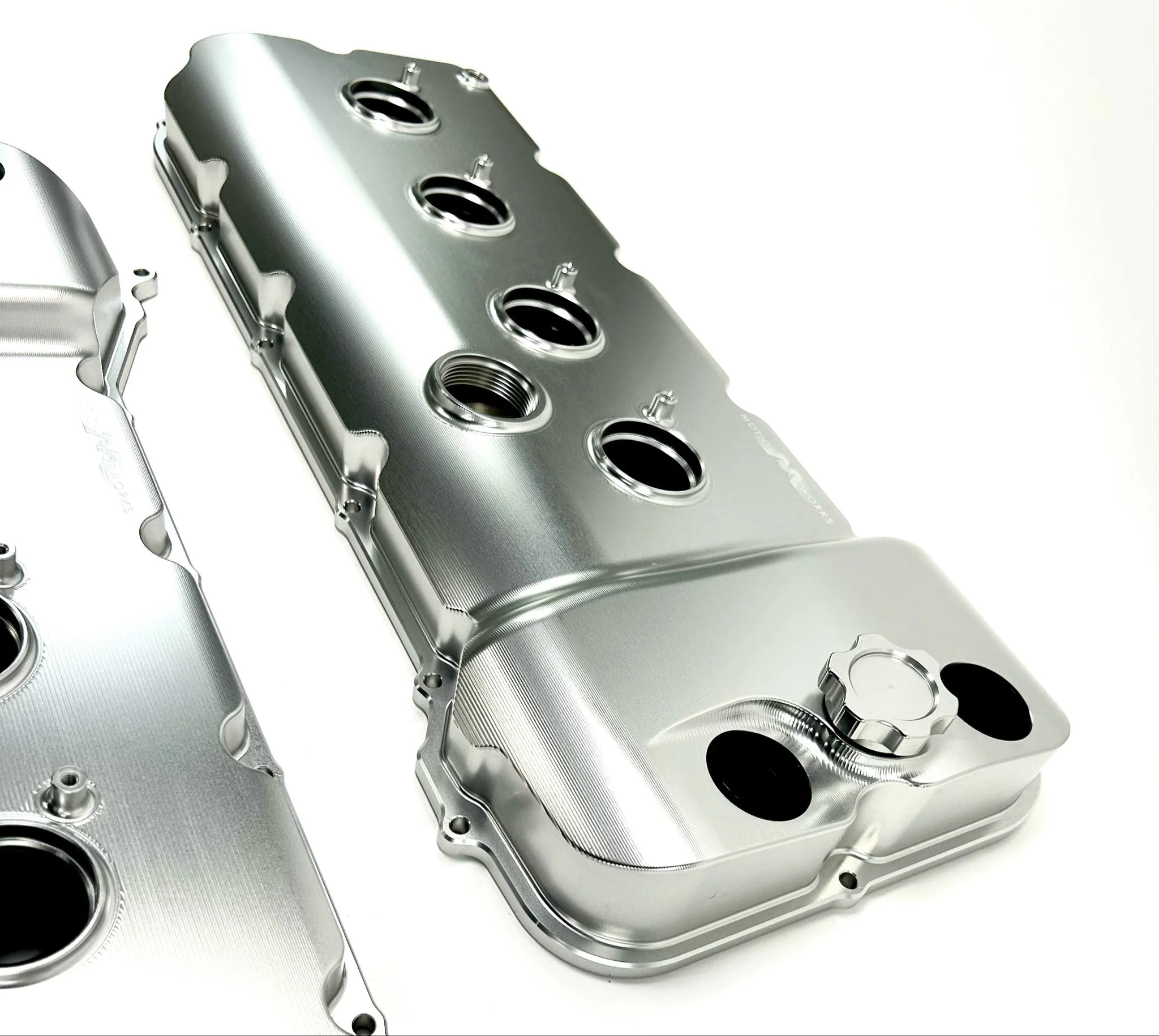

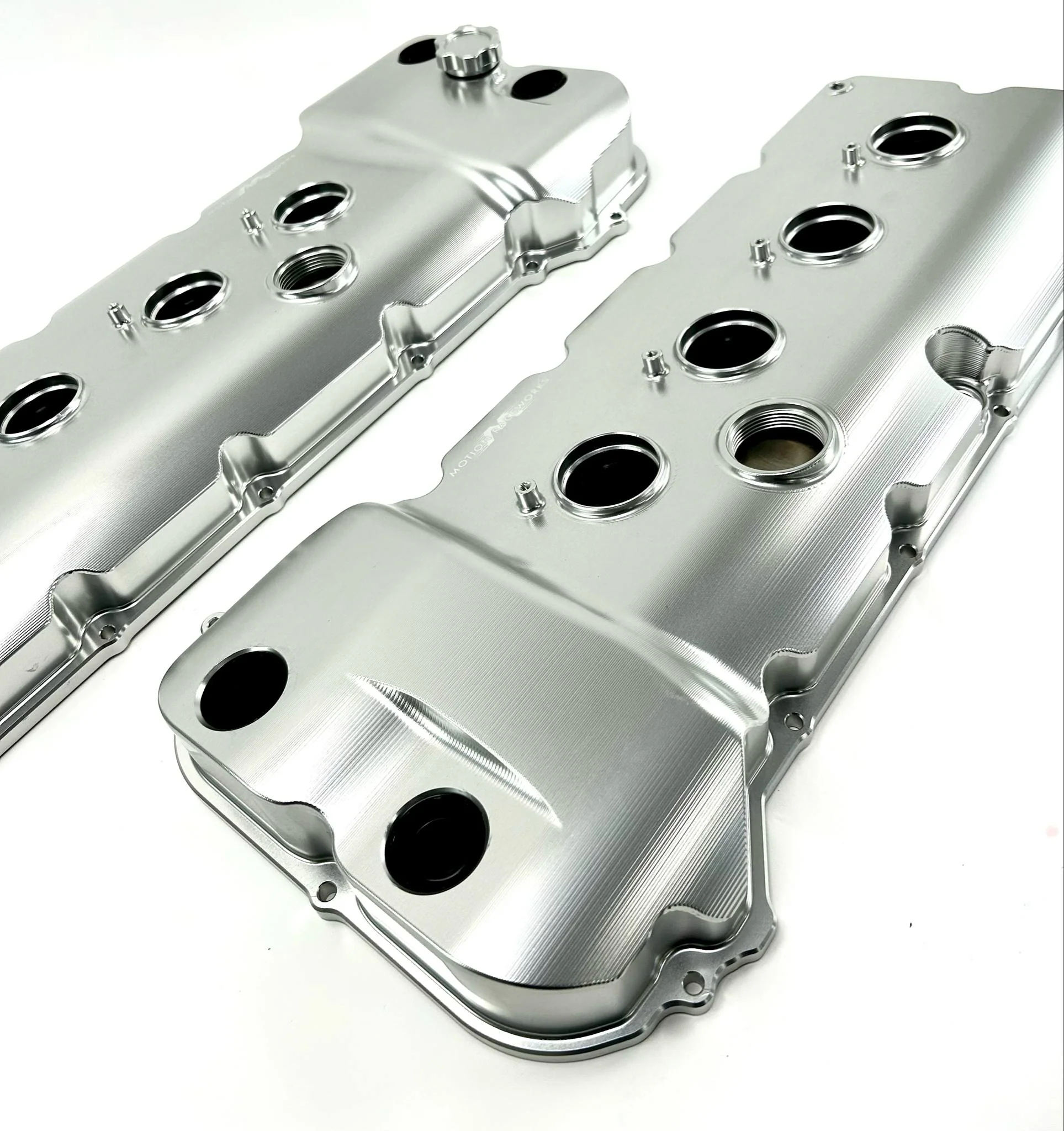

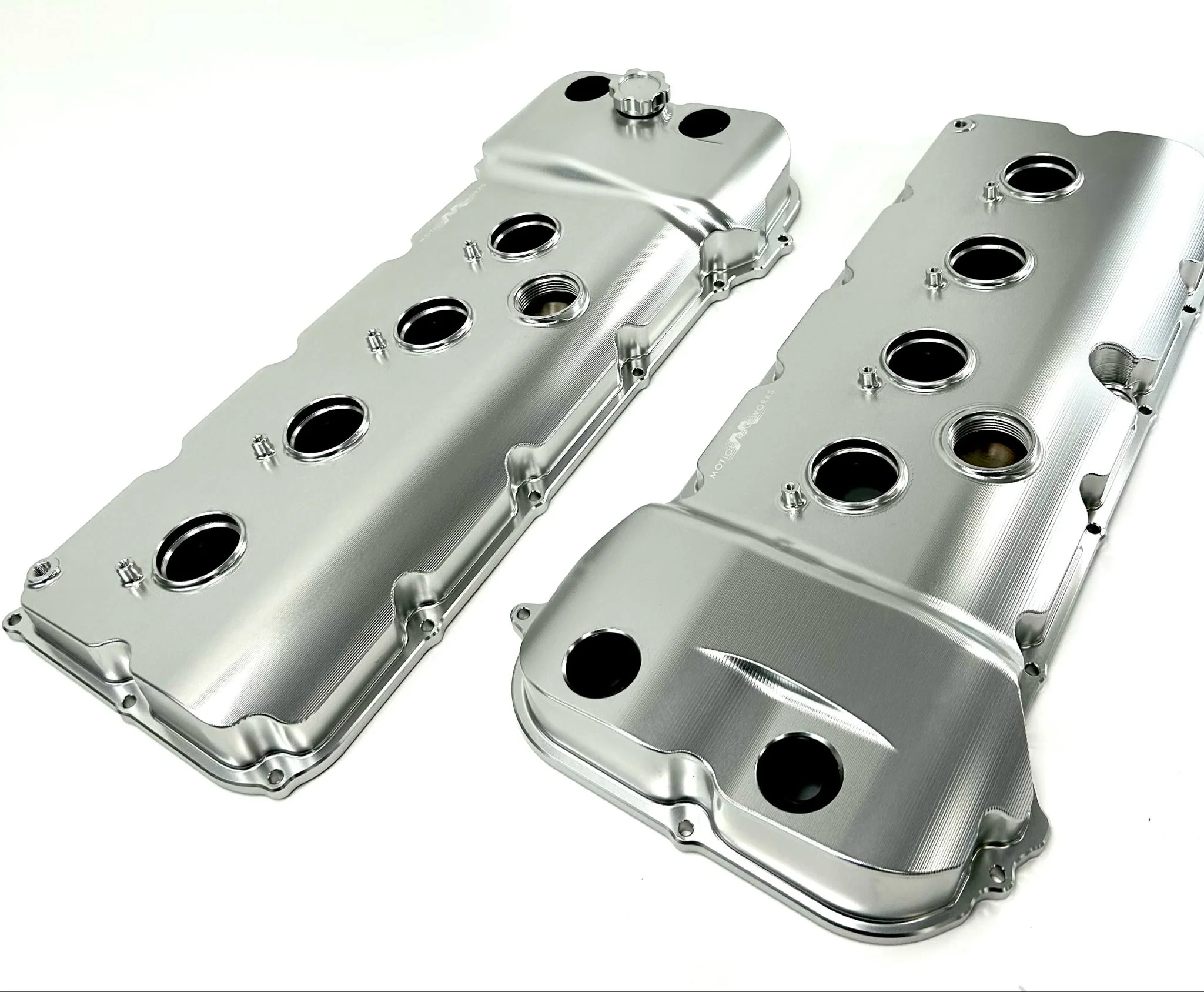

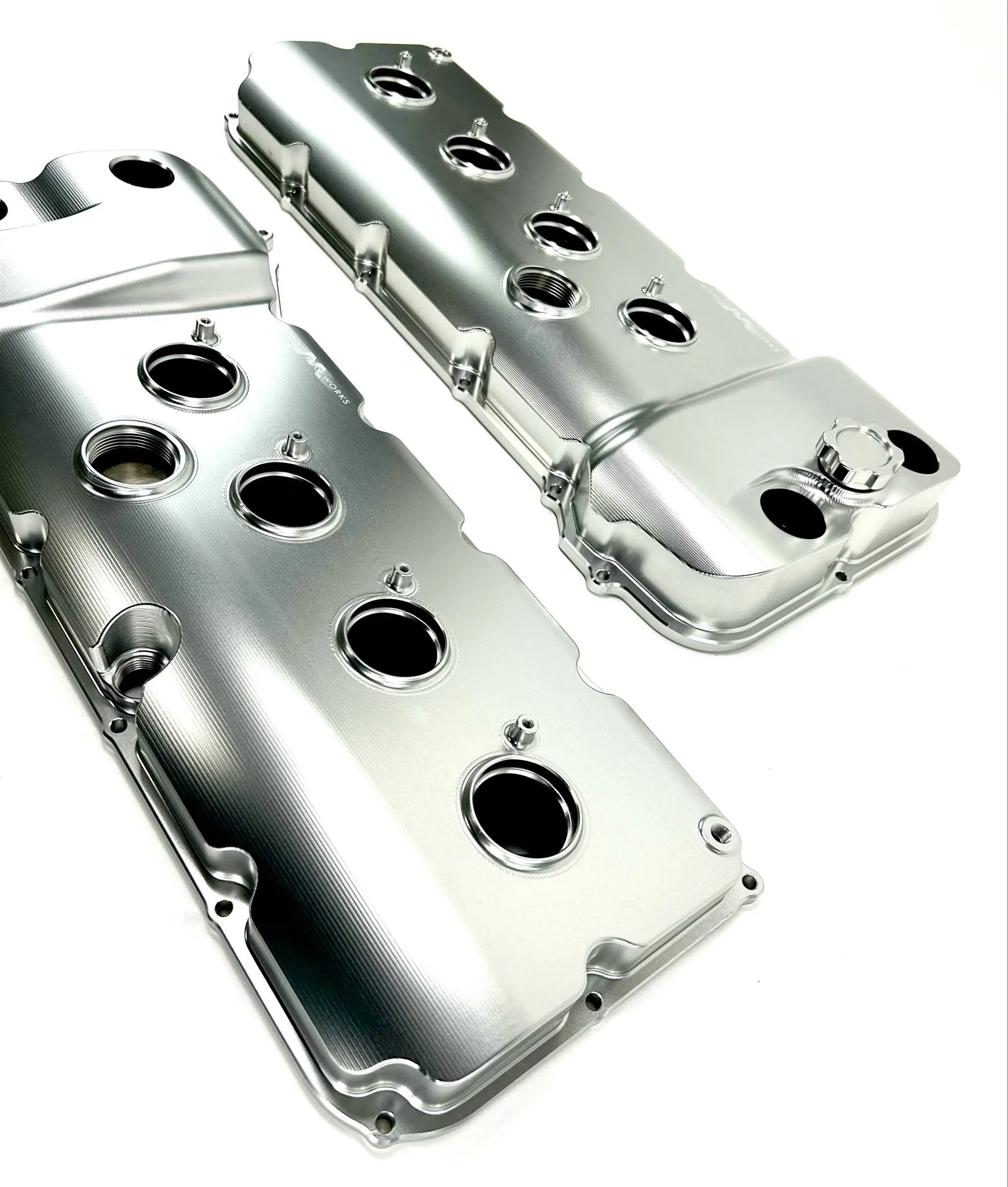

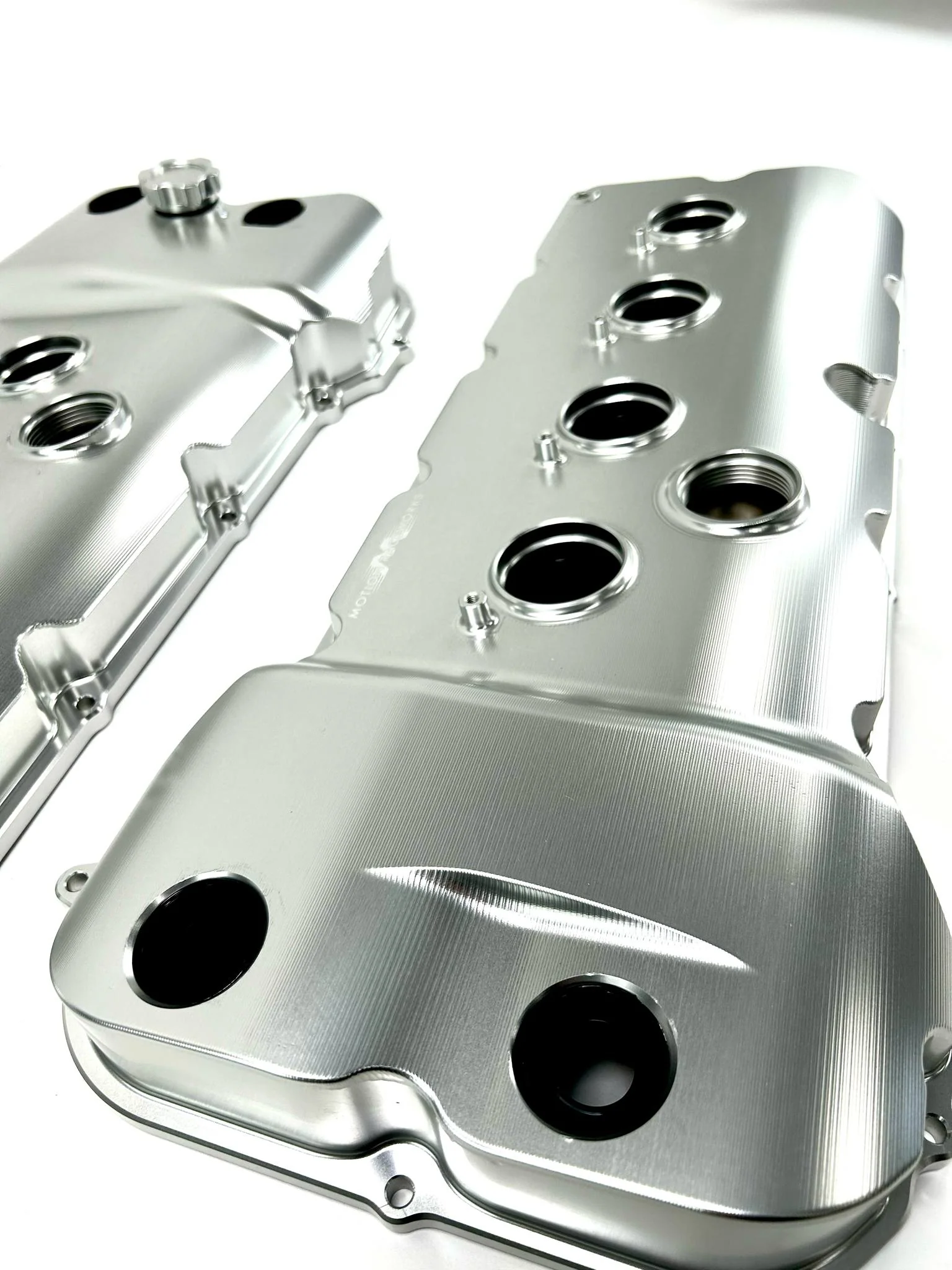

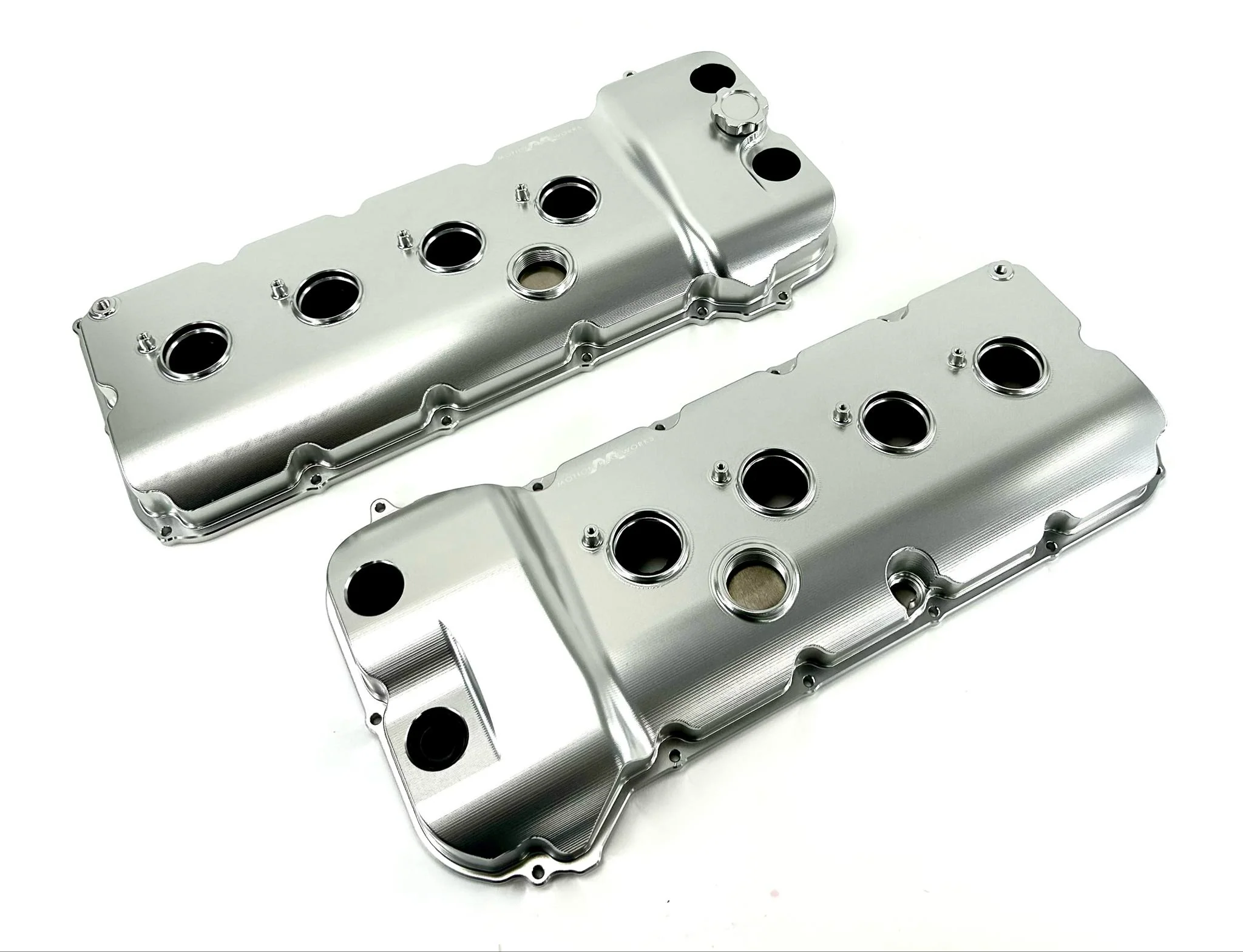

Motion Raceworks Billet Gen 1/Gen 2 Coyote VCT Valve Covers

Motion Raceworks seeks to innovate their way into simplifying builds while focusing on aesthetics and overall function! These billet Coyote valve covers are a showcase and a prime example of this.

The result is a valve cover that is something that can be used for a HUGE variety of builds without sacrificing looks or function.

Included:

• Driver & Passenger Valve Cover
• (1) Billet Oil Cap (16 ORB)
• (2) 20ORB Breather Fittings (Choose 10AN, 12AN, or 16AN in options)
• Pre-Installed Baffles

• Pre installed factory style seals for VCT
• Dipstick and dipstick adapter fitting
• Plug for dipstick hole for dry sump oil system engines

These valve covers fit the following Coyote variant cylinder heads:

• 2011-14 (Gen 1) Coyote
• 2015-17 (Gen 2) Coyote
• 2015-20 GT350 Voodoo 5.2
• 2020+ GT500 / Predator 5.2
• 2023+ F150 Raptor R 5.2 Predator

Features:

• Valve covers weigh 4.8lbs each (factory plastic covers weigh ~5lbs)
• Clear Anodized Finish
• VVT compatible
• Valve Cover able to be removed without unbolting coil packs
• Baffled -20ORB Breathers adaptable to 10AN, 12AN, 16AN
• Billet Oil Cap (-16 ORB)
• Stainless Hardware
• Reuses Factory Style Gaskets
• Mounts factory coyote coils

• CNC Designed, Made, Machined, Assembled, Coated in the USA
• Fits factory style pattern heads with factory or shaft mount style rocker arms.

Need a mounting option for IGN1A smart coils? Click Here

***Note baffling works extremely well on low to mid horsepower vehicles.  We can not guarantee its ability to control oil vs PCV on high horsepower, boosted, and methanol powered vehicles.***

Watch as Brett Lasala discusses the features and difference of these Coyote valve covers and shows us how to install them on our 5.2 Predator Engine!
