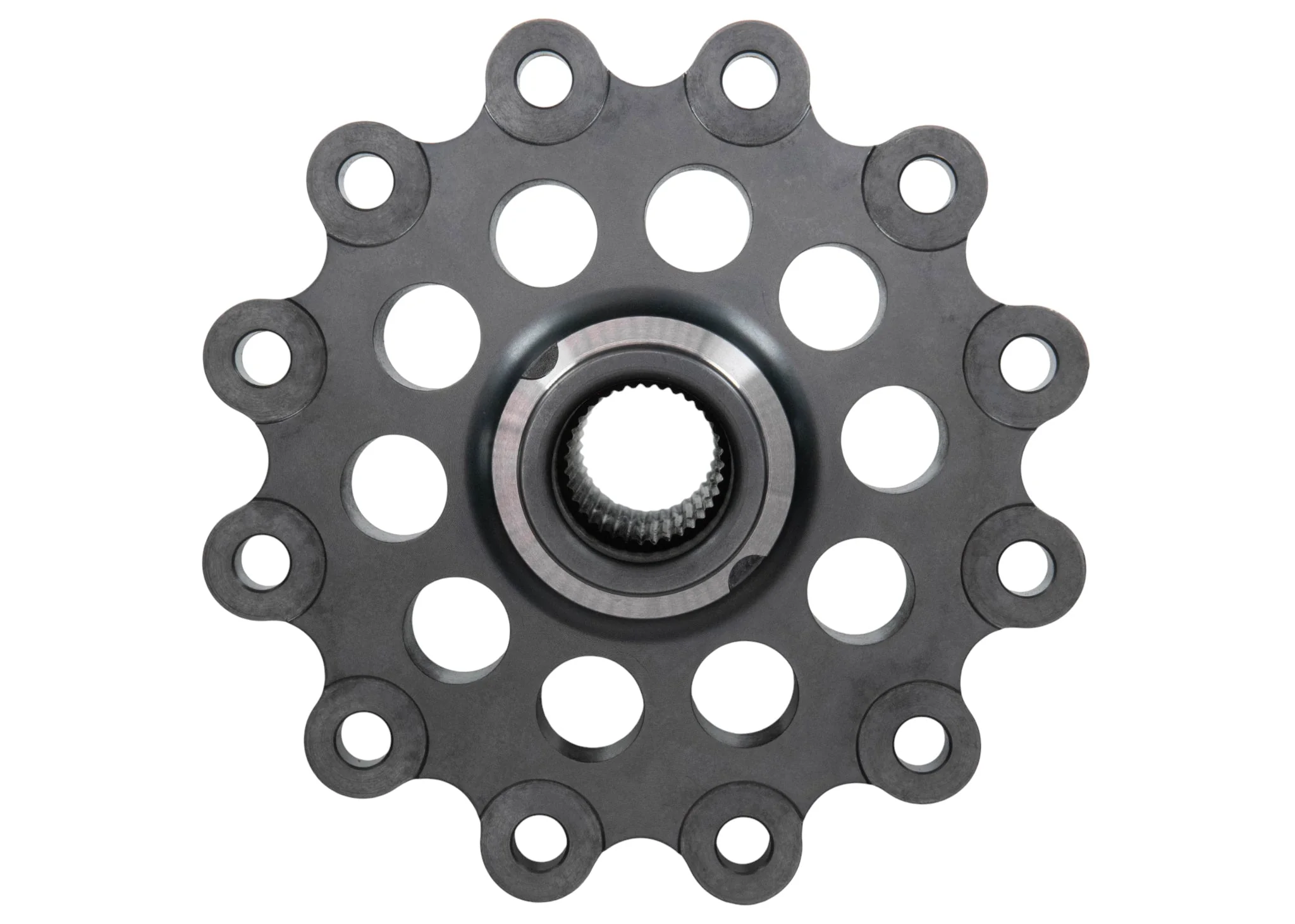

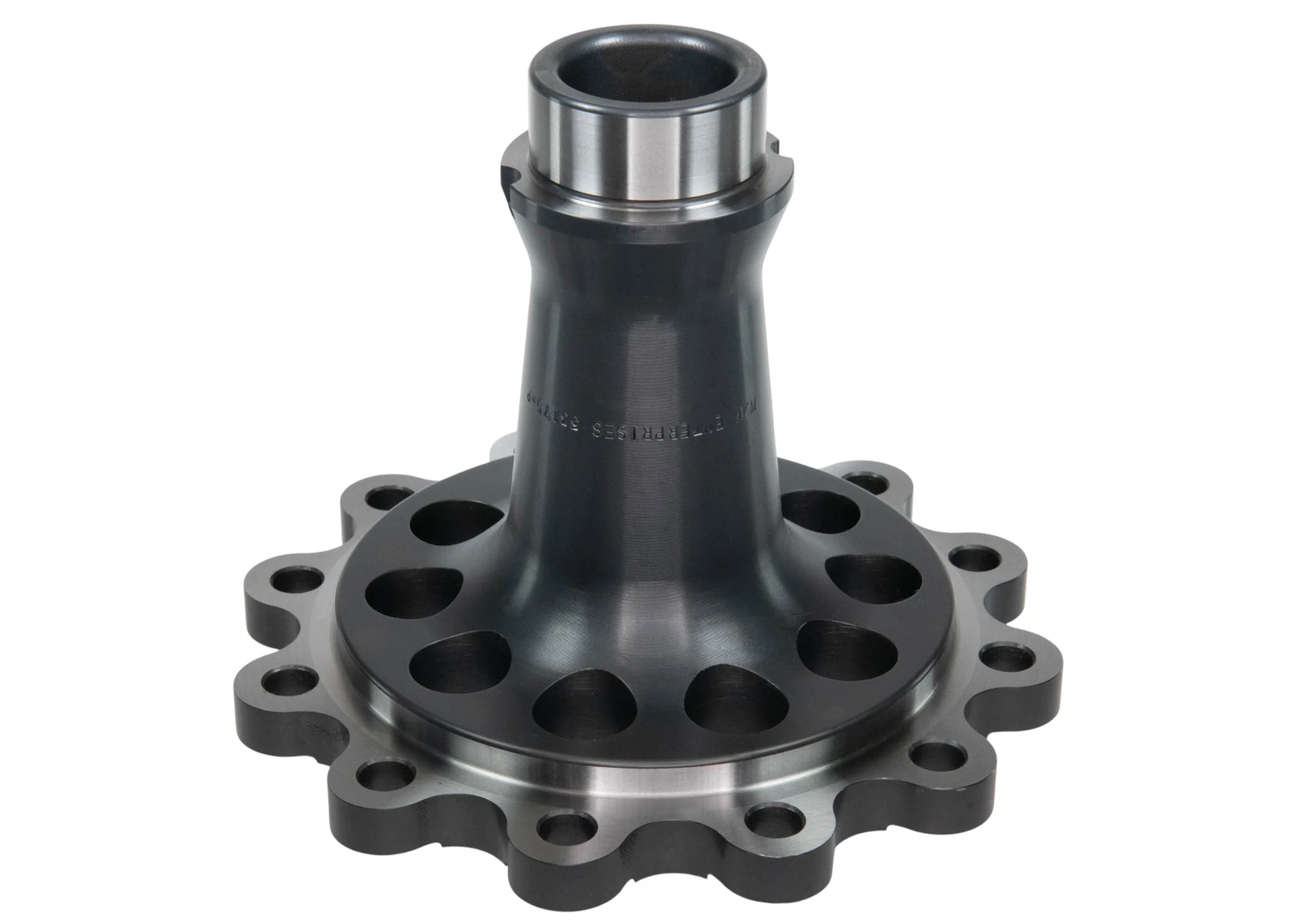

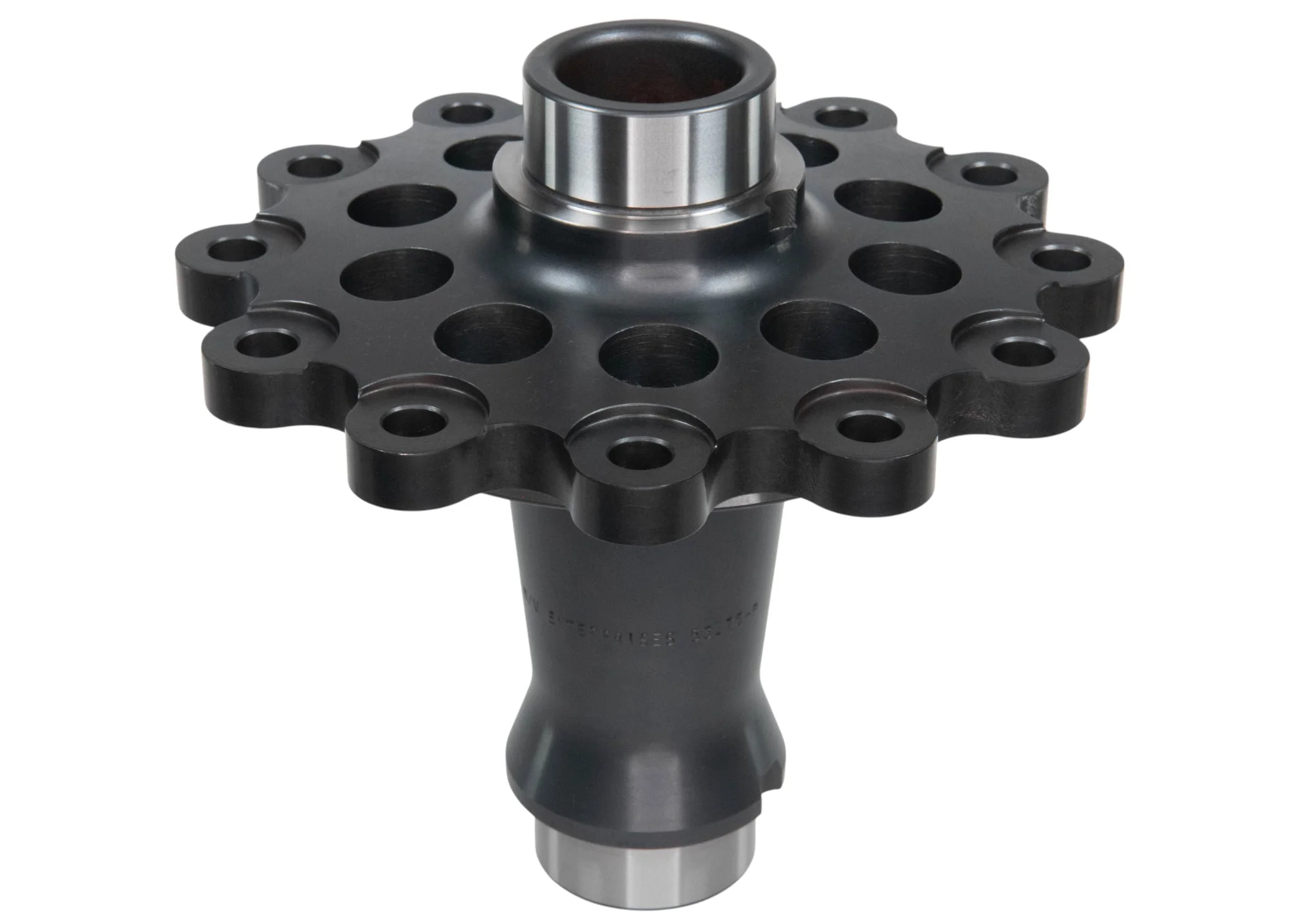

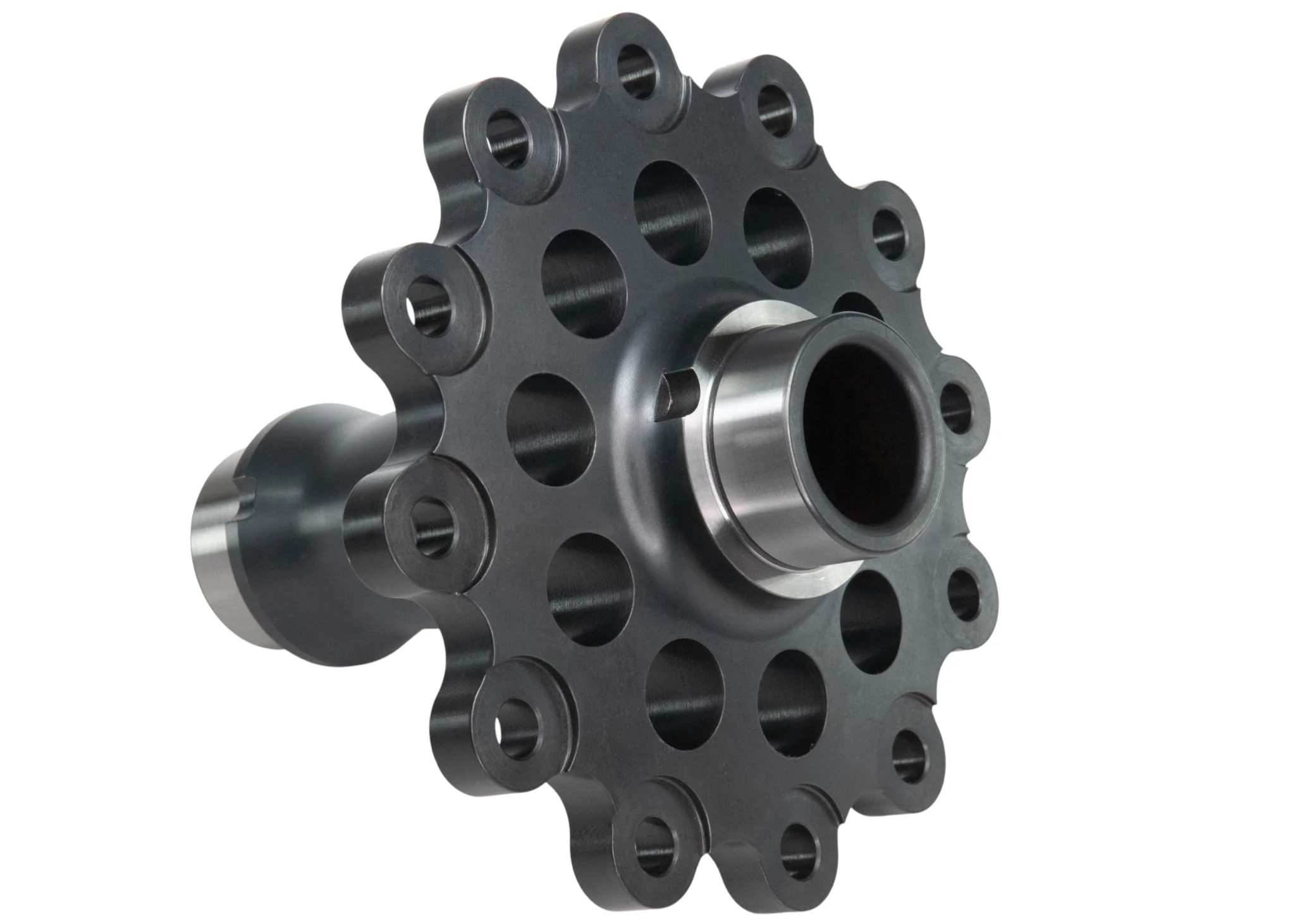

Dana 60 35 spline lightweight steel spool
Mark Williams lightweight Dana 60 spool w/ MW style 35 spline. Manufactured from through hardened 4140 high strength steel. Proper housing ends are required. 17 lbs
*Dana 60™ is a trademark of Dana Limited. MW products are not manufactured or authorized by Dana.
Instructions: SB0046
Features:
- Cut for MW 35 Spline axles
- Works with 3.250" bearing carrier
- 4140 Through hardened steel
- Uses 1/2" bolts
- Weighs 17 pounds
- Made in the USA
Note: We recommend replacing ring gear bolts every time a new gear is setup. Correct MW part number for Ring Gear Bolts for this spool is 56900
All Mark Williams steel spools are precision machined from 4140 steel forgings on CNC machinery for ultimate precision and accuracy. The ring gear register and bearing diameters are precision ground with the spool mounted on a special arbor to assure concentricity between the splines and the ground surfaces and final ground to ensureszero runout on the ring mounting surface. Engineered for maximum reliability, MW spools have an increased cross-section under the ring gear register to prevent ring gear deflection. MW spools are heat treated in-house with the same austemper through hardening heat treat process as our strongest in class MW “Hi-Torque” axles for ultimate strength. MW lightweight spools are profile milled and lightening holes are added to reduce the weight by as much as 25% over the standard version without sacrificing the strength of the spool.
The Mark Williams Advantage
- Through hardened alloy steel, not egg-shell-thin hardened case
- Â Ring gear mounting diameter is ground to precise press fit
- All mounting diameters concentric and square within .001"
- Increased cross section and generous radius under mounting prevents deforming
- Made in the USA! Forged, Ground, Machined, and Heat Treated in the USA!
Original: $499.00
-65%$499.00
$174.65
