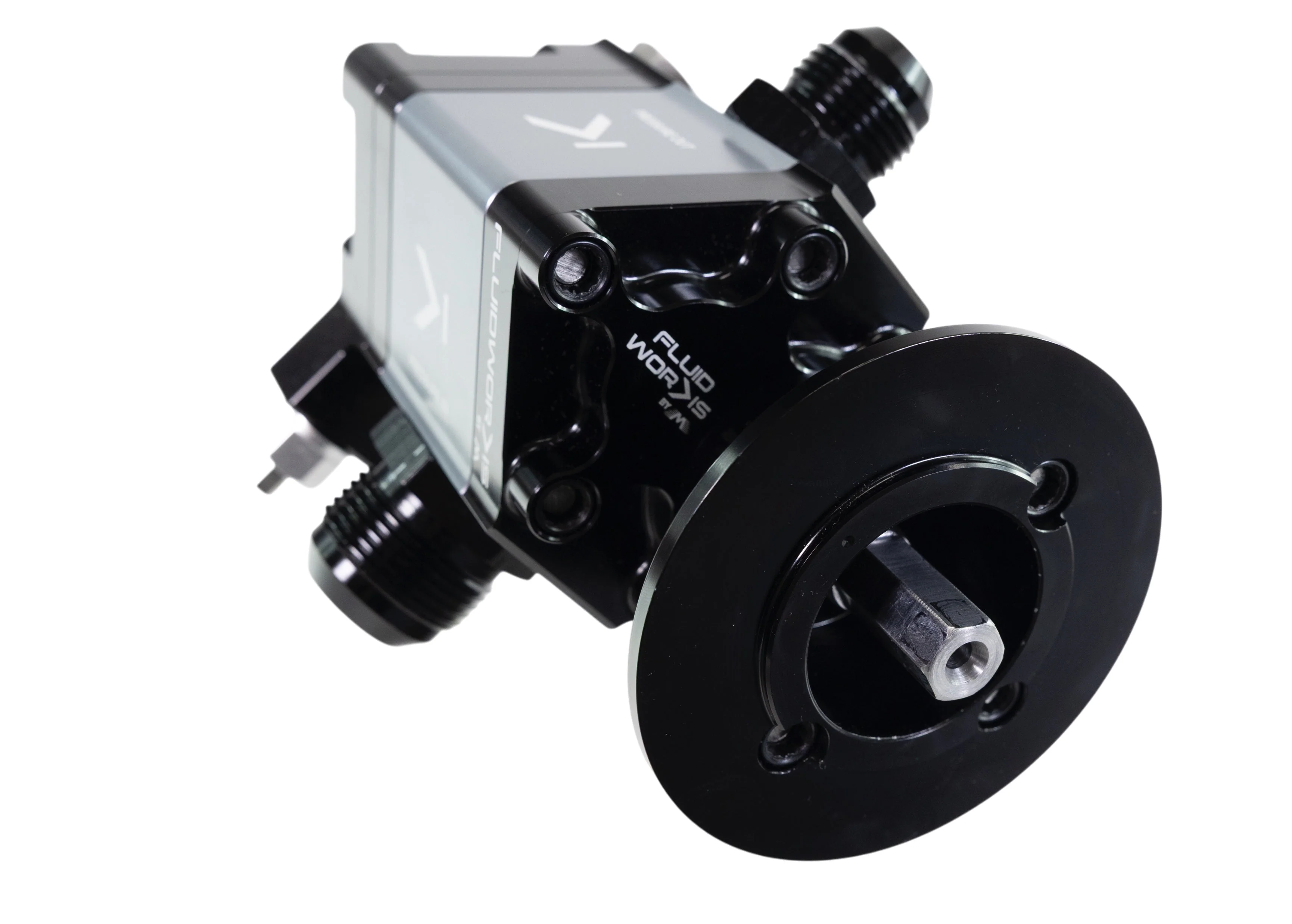

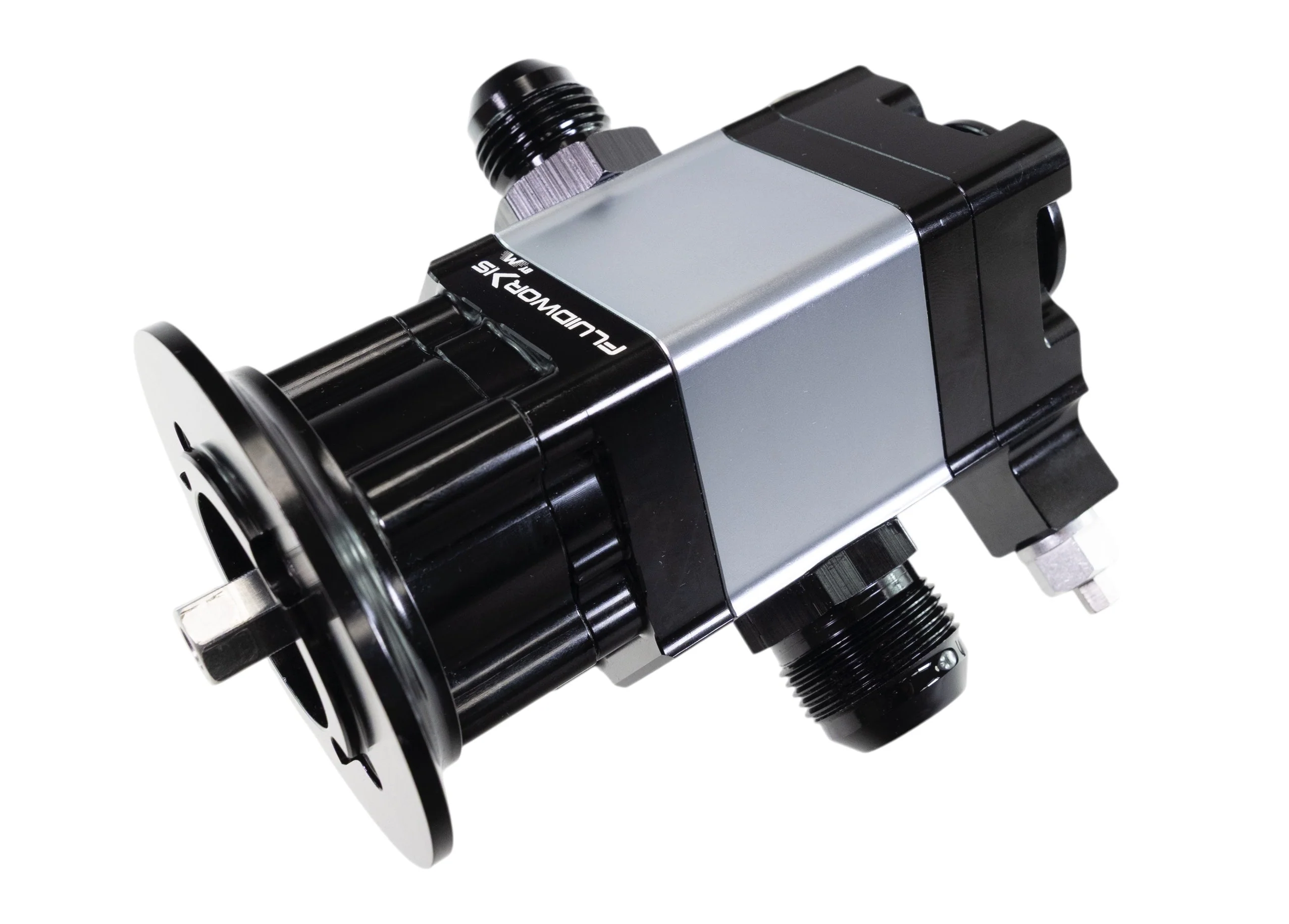

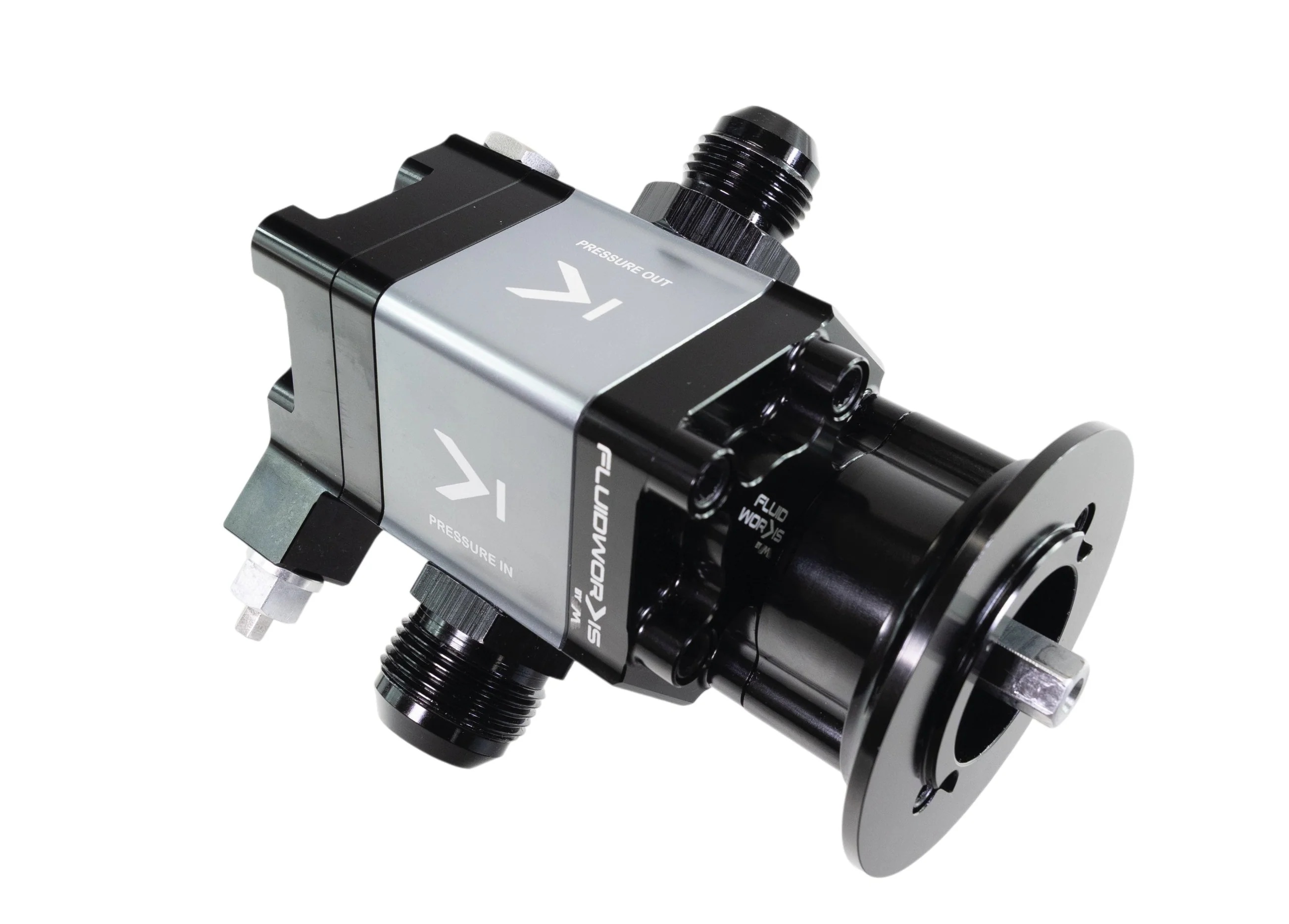

Fluidworks Single Stage Noonan 4.9 Racing Oil Pump

This single stage external wet sump pump was designed to work with Noonan 4.9 Hemi applications with offerings of front mount/reverse rotation and rear mount/standard rotation. This spur gear oil pump utilizes a 2" pressure section to deliver volume and pressure needed for these engines and has been torture tested in promod applications and has proven excellent in oiling pressure and bearing life!

FluidWorks Oil pumps come from a heritage of excellent durability and craftsmanship, previously R&R Oil Pumps. These pumps are 100% Made in the USA. Utilizing a durable spur gear design, these pumps are designed to deliver oil pressure in the harshest conditions while standing up great to wear and debris over time.

Each oil pump is hand built and assembled with the highest quality standards and most strict machining tolerances. Pumps are then put through flow testing process to insure out of the box performance before being packaged and shipped.

Note:

• Standard rotation indicates the pump points towards the rear of the car (hex shaft points towards front of the car.
• Reverse rotation used where pump points towards front of car, shaft points towards rear of the car)

Features:

• 100% Made in the USA
• Billet Anodized Housing
• Precision Ground Stainless Internal Shafts
• Bronze Idler Gear
• Steel Drive Gear
• Internally Manifolded for no external scavenge manifolds
• Spur Gear Design for ultimate durability
• Adjustable Oil Pressure Regulator
• Each Pump Hand Built and Tested
• Includes Fittings
• 5/8" Driveshaft with keyway
• Oil Pumps include all fittings
• 2" Pressure Section
• 2" Scavenge Sections

Pump comes standard with the following items

• 16AN Pressure In
• 12AN Pressure Out
• Stainless Vband Clamp

For replacement 12AN Fittings: Click Here

For replacement standard 16AN Fittings: Click Here

For replacement long 16AN Fittings: Click Here

For replacement 10orb hex plugs: Click Here

Need a different style pump? Check out our full lineup of Wet and Dry Sump Pumps and accessories by clicking the link below.
