Motion Billet Gen 4 Race LS Valley Cover

Motion Billet Gen 4 LS Valley Cover 10-10051

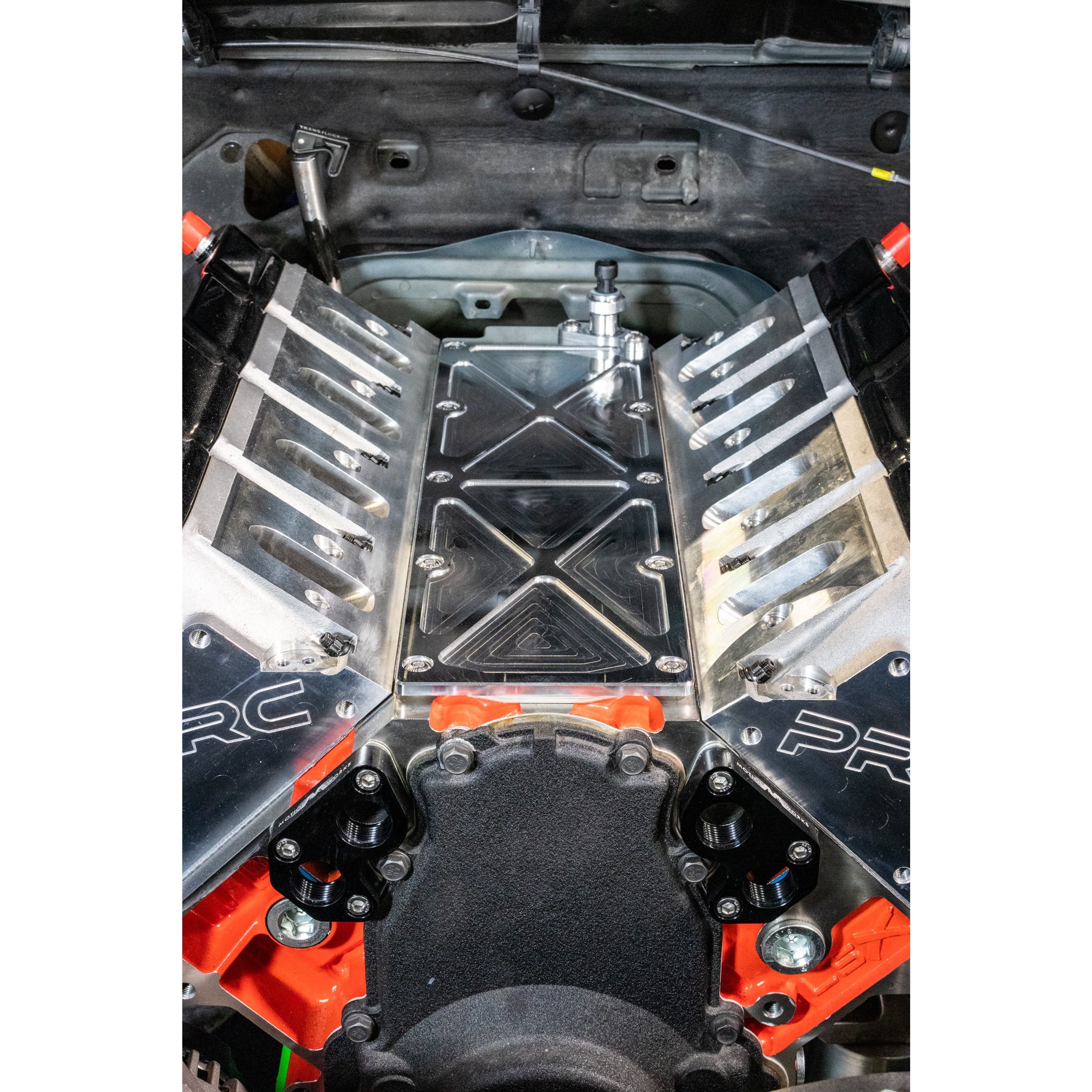

This valley cover was designed to solve all of the needs in building a Gen 4 race engine while making it look REALLY good on top of any engine.

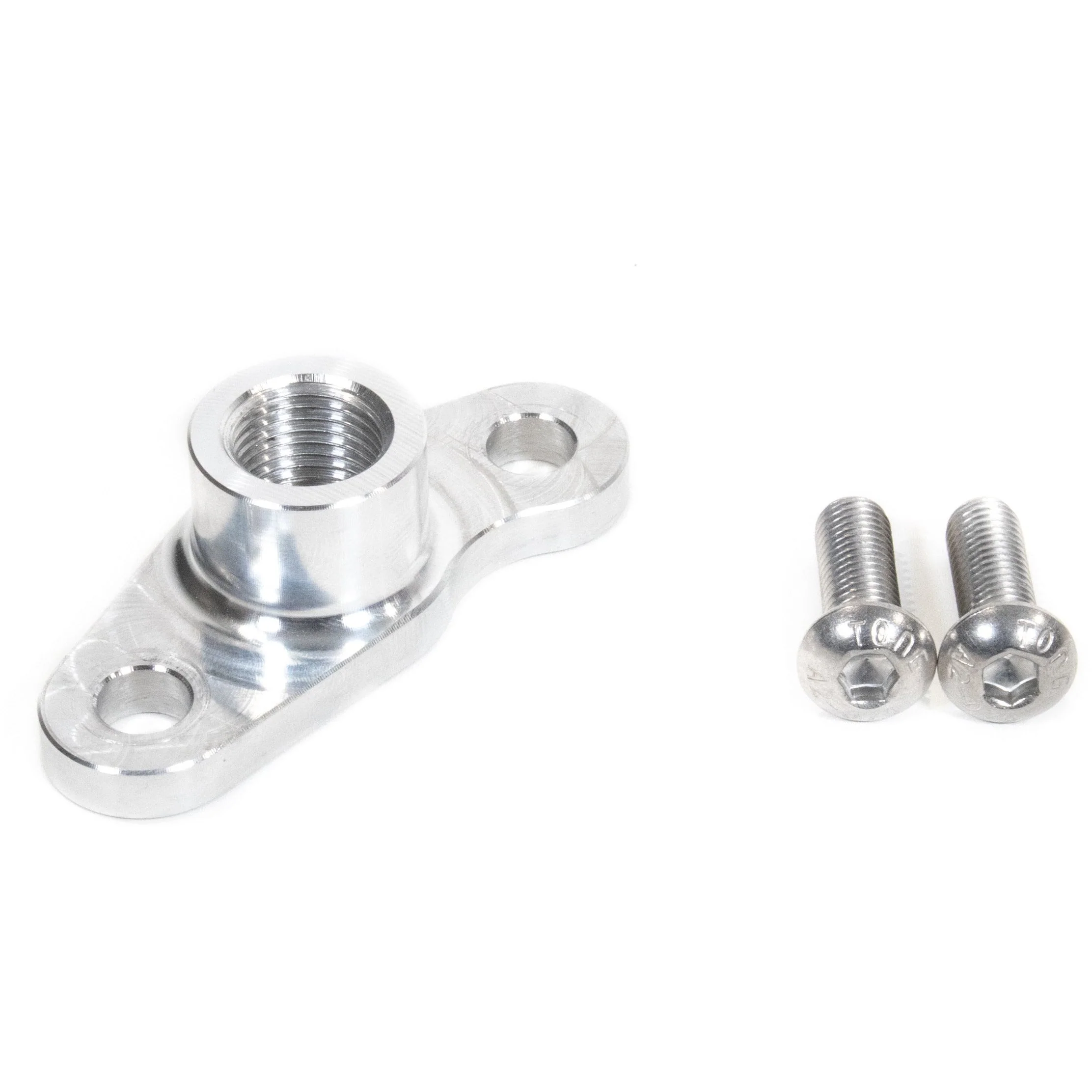

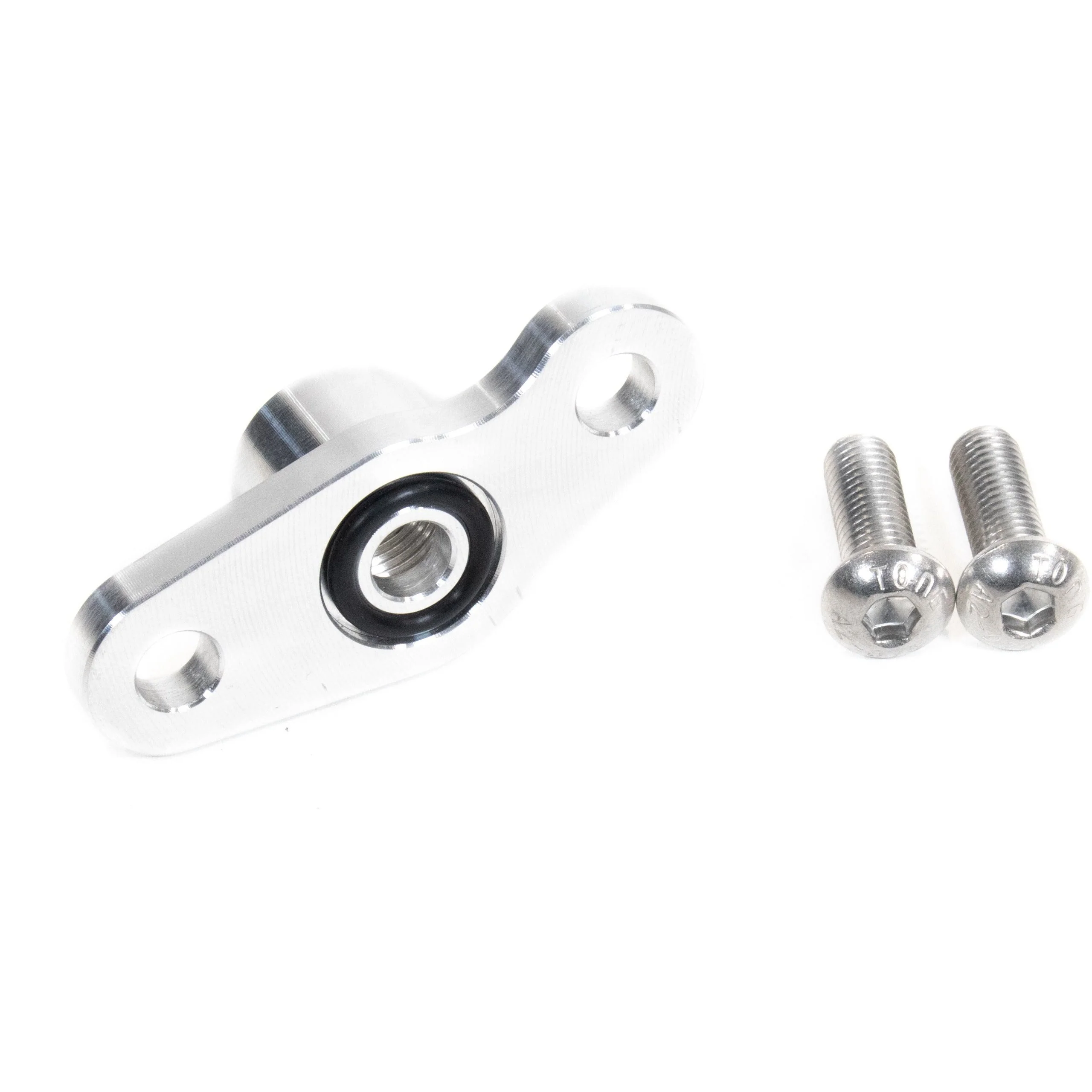

The rear oil sensor location on this cover is modular.  Folks utilizing a factory style computer or factory style oil sensor can add the billet oil pressure block which bolts on and allows use of factory sensor.  For those wanting to use a mechanical gauge or aftermarket oil pressure sensor, simply leave the block off of the back and there are 1/8" NPT threads in the valley cover that allow use of gauge adapters and 1-100 psi pressure transducers.

Features include:

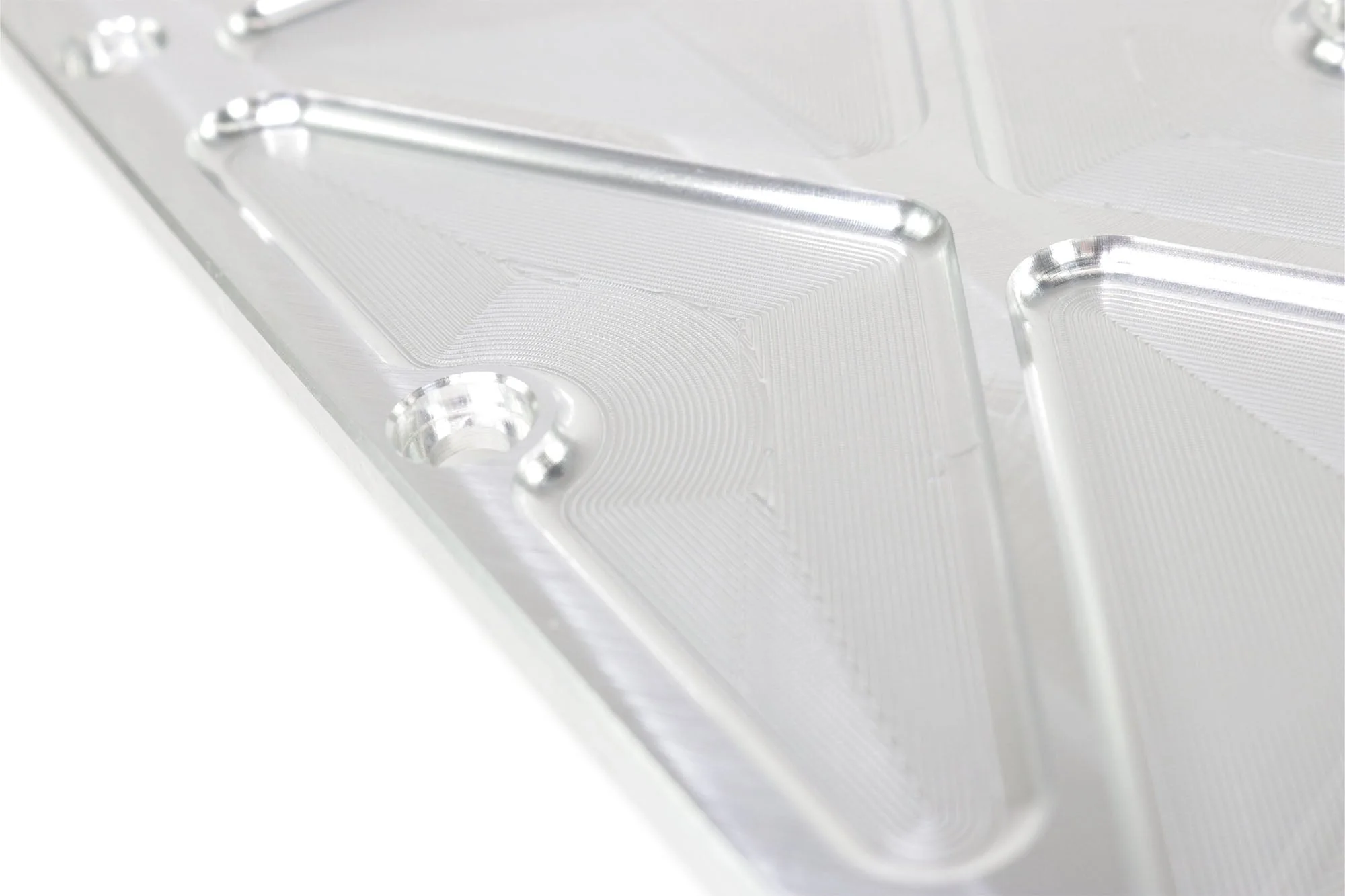

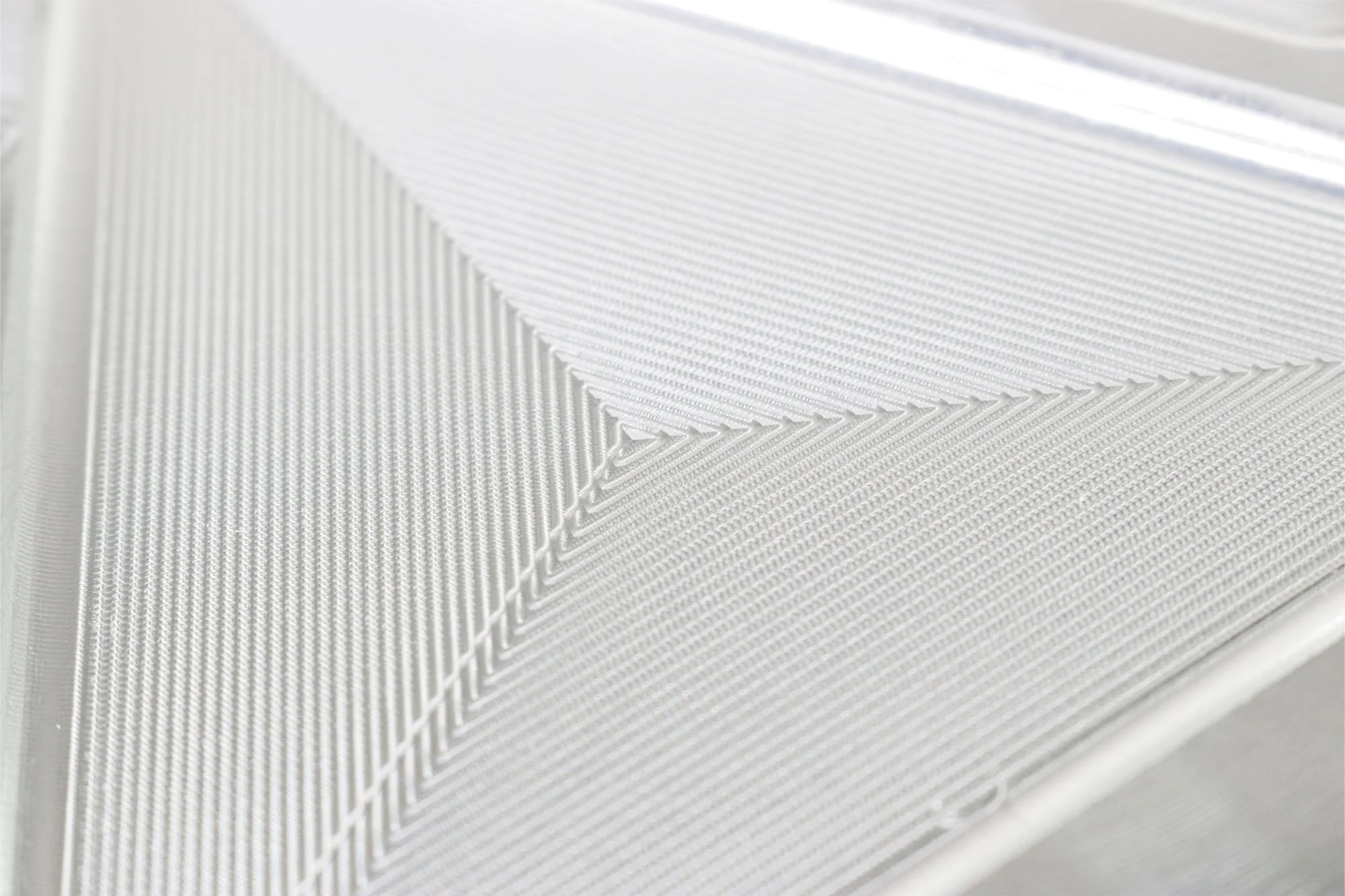

• CNC machined from 6061 T6 Aluminum

• Made in the USA
• Uses factory valley cover gasket
• Stainless hardware included
• Uses factory gasket
• Same height as factory cast cover for intake clearance
• Trussed design weight savings

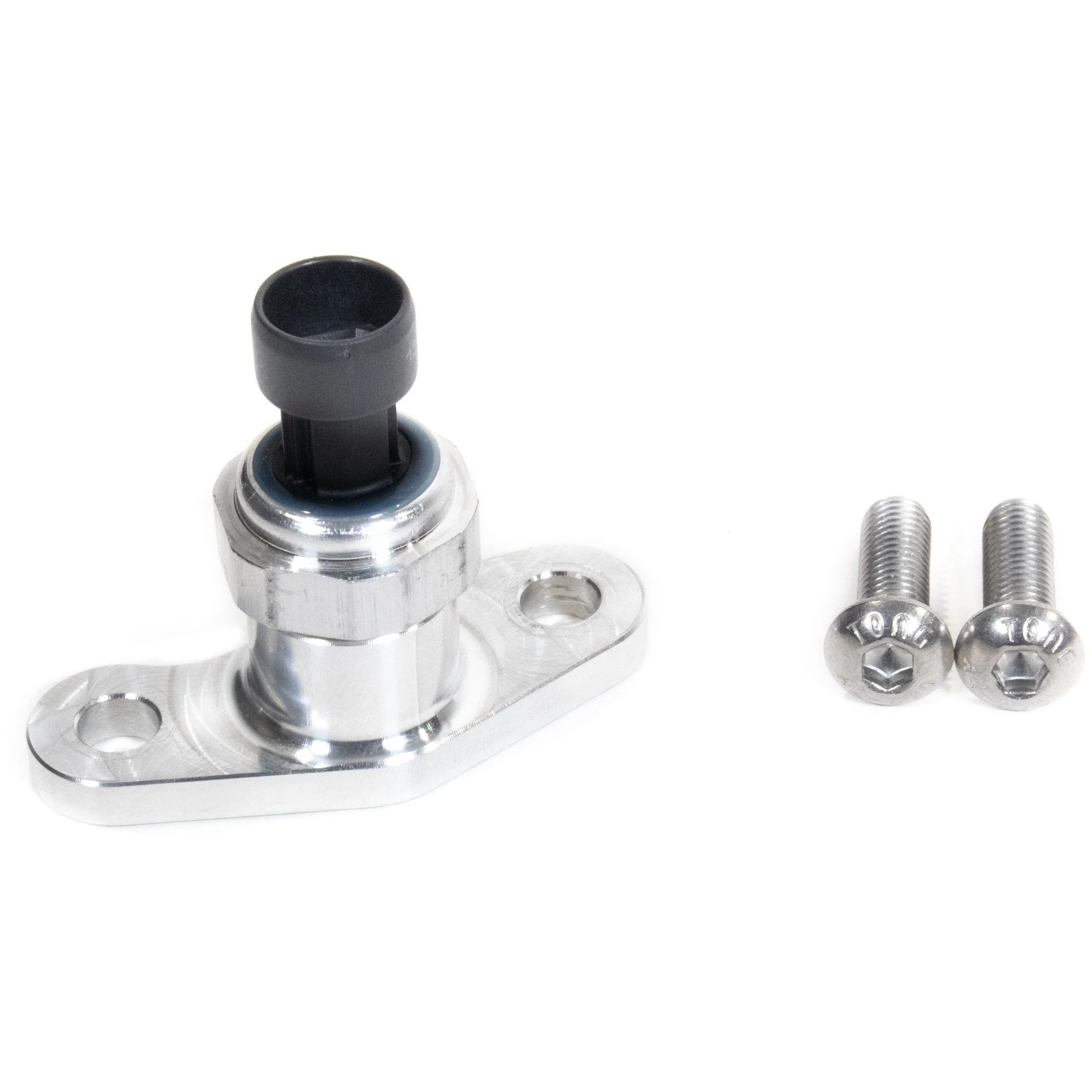

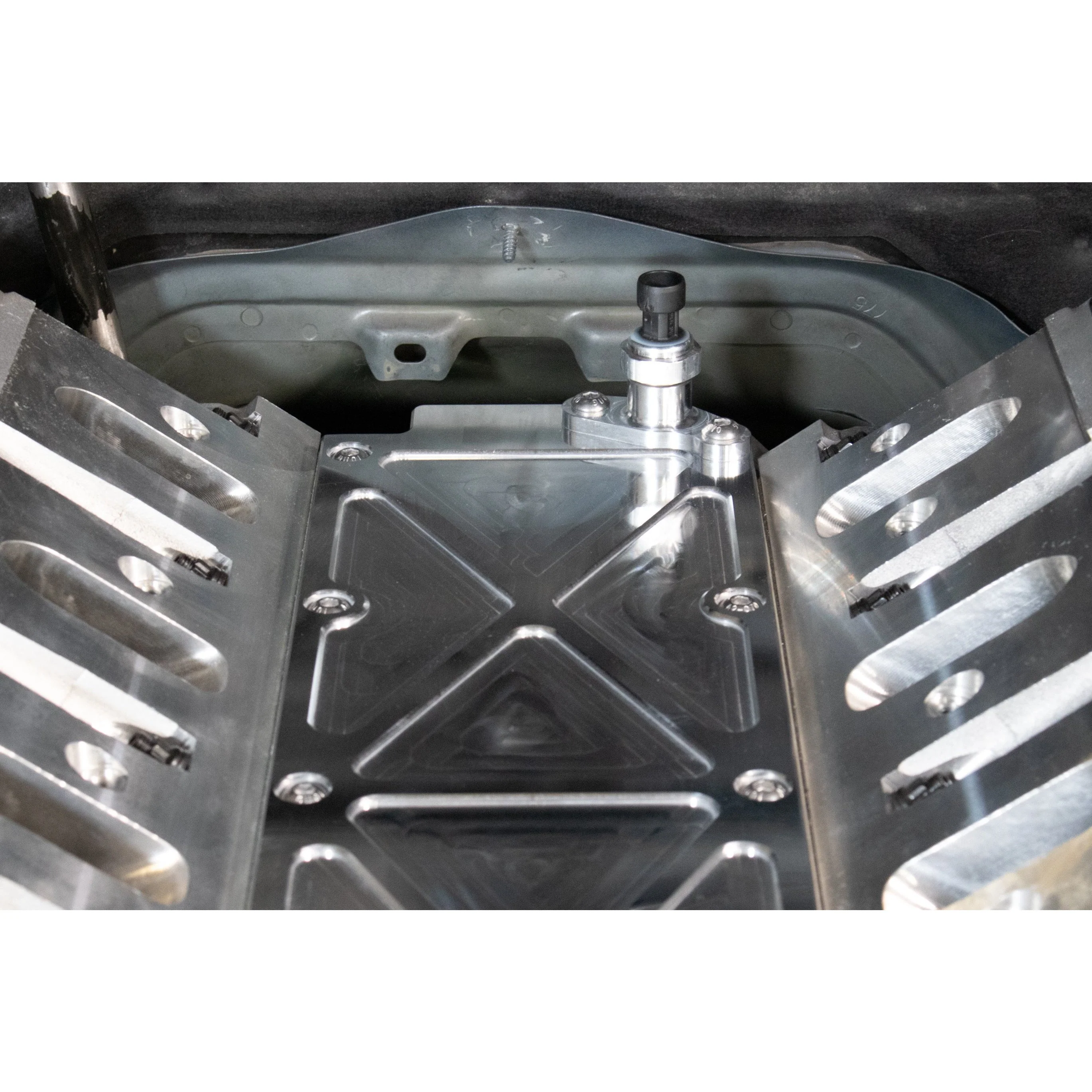

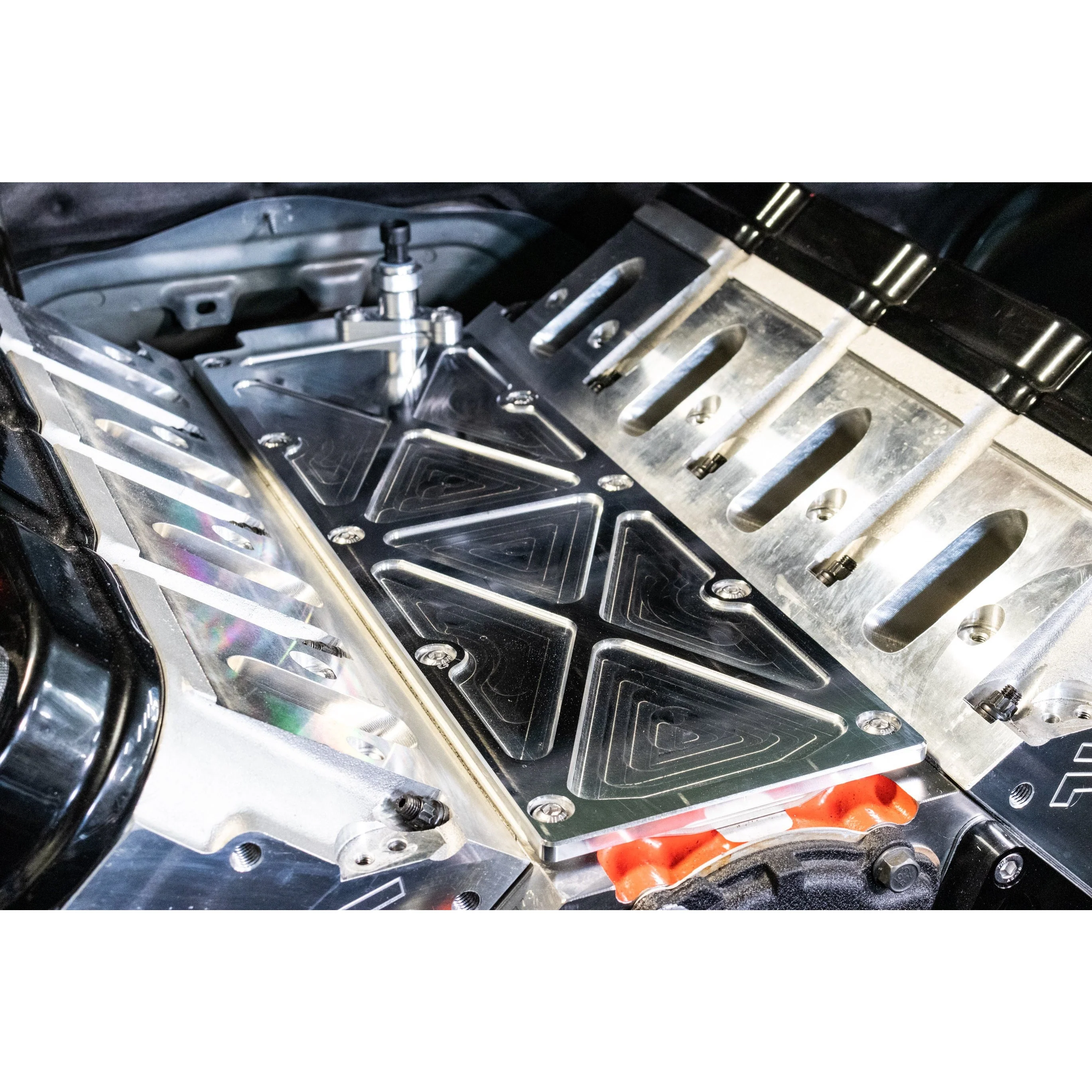

• Add on sensor block allows you to bolt on factory oil pressure sensor without modification (factory height overall)

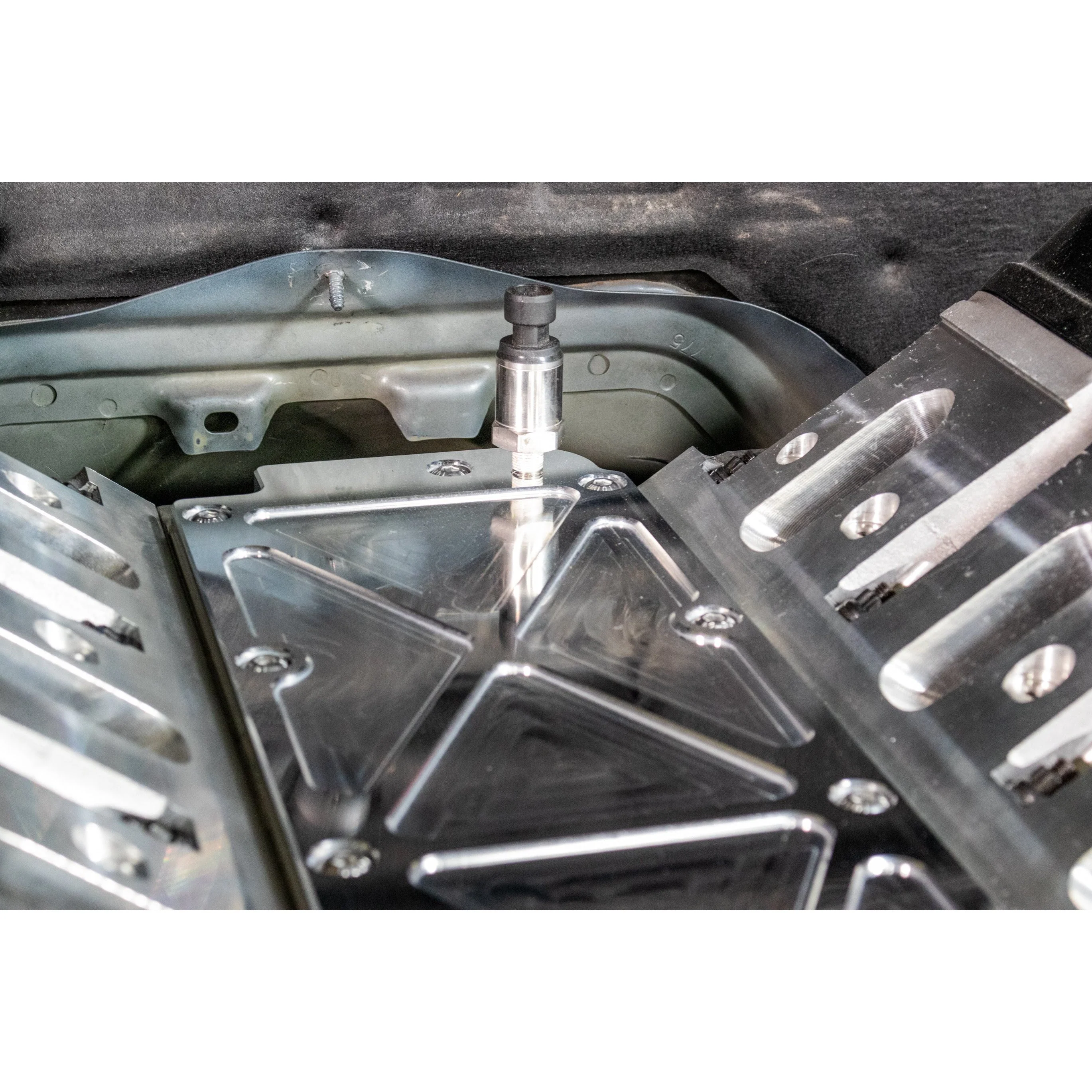

• 1/8" NPT oil port built into valley cover for aftermarket sensors
• Fits LS3, LS7, LSA, LS9, LSX, Dart and other Gen 4 LS blocks

Note: This cover does not have provisions to block off AFM/DOD ports in the valley. For this cover please see our other Gen 4 Valley Cover. Click https://www.motionraceworks.com/products/motion-billet-gen-4-afm-delete-valley-cover-10-10033

 No Oil Pressure Sensor Block Included
