Motion Raceworks 2 Stage Active Billet Catch Can Gen 1/2 Coyote Kit

Motion Raceworks Billet Active 2 Stage Recirculating Catch Can Kit Coyote Stock Valve Cover Kit 32-106CK ( Gen 1 & 2)

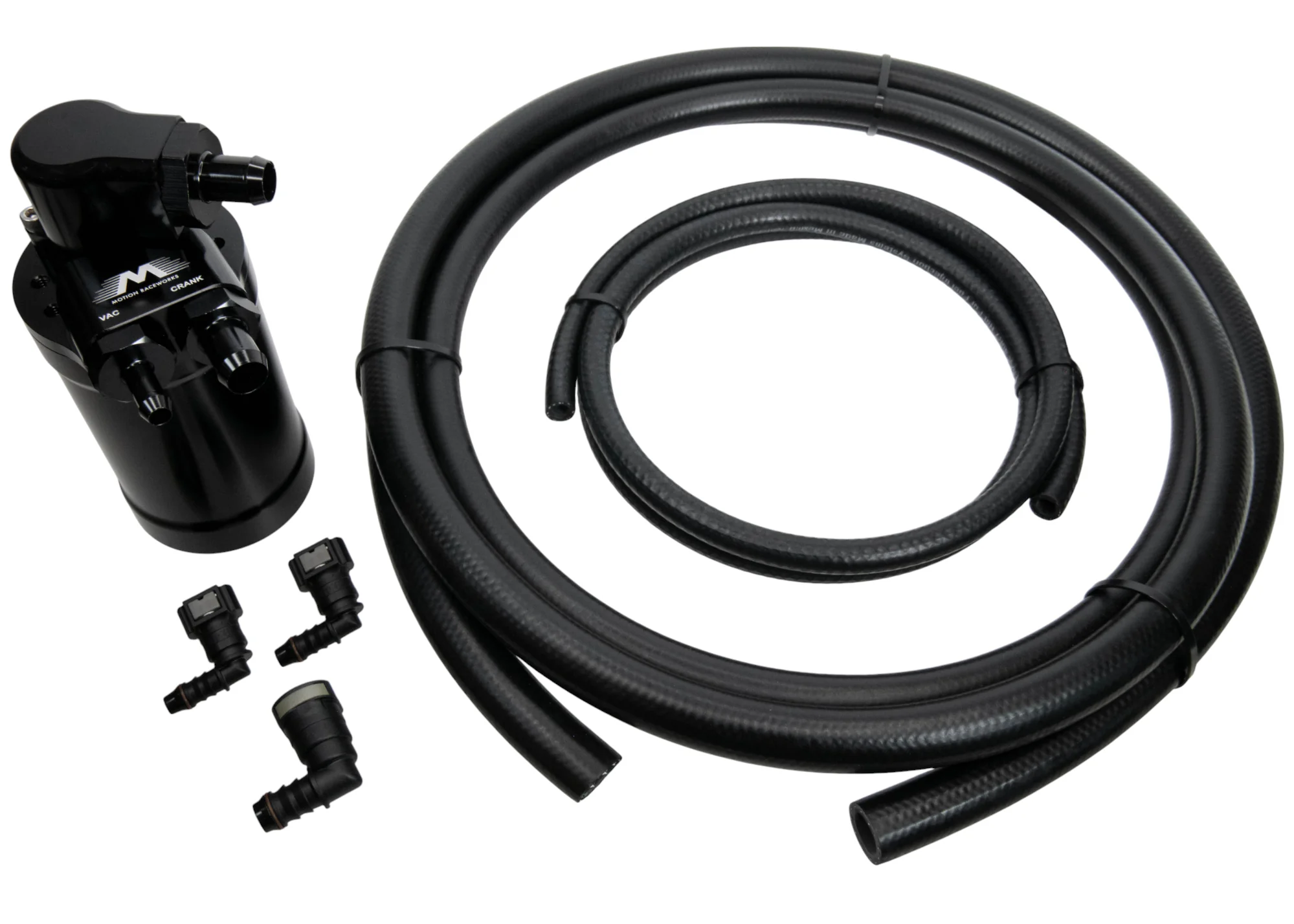

This kit contains the following items:

• (1) Active 2 Stage Catch Can
• (1) Billet Swiveling Recirculating Top
• (1) -12ORB to 5/8 hose barb fitting
• (1) -10ORB to 5/8 hose barb fitting
• (1) -10ORB to 3/8 hose barb fitting
• (2) 90 degree 5/8 quick connect to 5/8 hose barb
• (1) 90 degree 3/8 quick connect to 3/8" hose

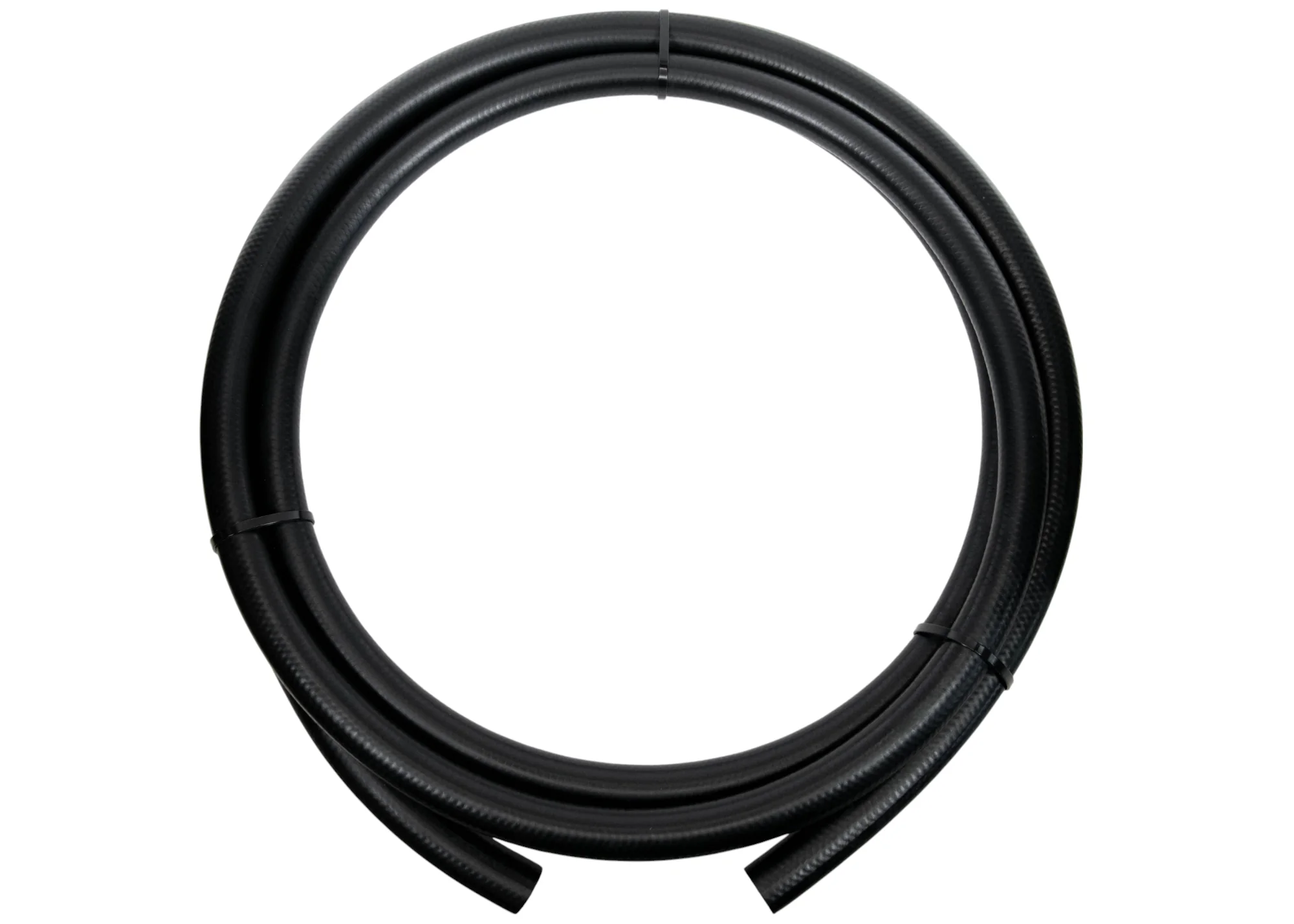

• 6ft 5/8 rubber hose

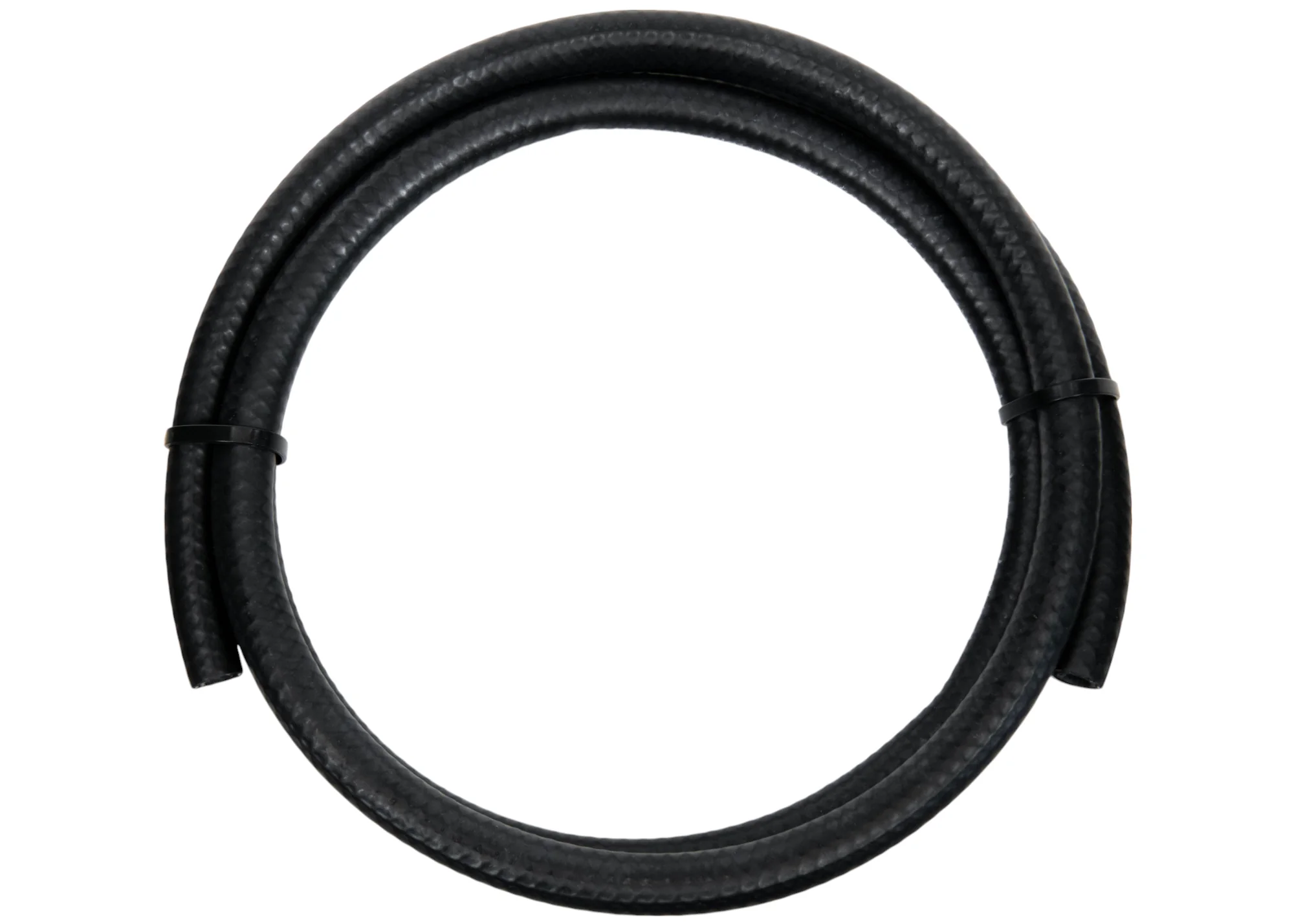

• 6ft 3/8 rubber hose

Optional Cold Side Inlet Kit

Designed to connect to factory valve cover quick connect fitting and factory style quick connect on factory or aftermarket cold air intakes equipped with this style connection.

• 90 degree 5/8 quick connect to 5/8 hose barb
• Straight 5/8 quick connect to 5/8  barb
• 6 ft 5/8 rubber hose

This catch can is the results of years of building, refining, and optimizing N/A and Boosted combos. Featuring a dual internal baffling design, this can not only flows a high amount of air but keeps the filter and your engine bay dry from oil saturation due to poor can design.

One of the shortcomings of a typical can (including our own) is having fittings on opposing sides, and/or having the fittings clocked incorrectly.  This has been solved by having fittings coming out at 90°'s from the top of the can with a 180° clockable can by using our multiple bolt hole configuration top lid.  This means you can mount the can virtually anywhere in the engine bay and still have the fittings pointing in the correct orientation.

All cans come bright black anodized for a beautiful and durable finish.

Features include:

• 100% Made in the USA
• Billet Top/Bottom Hat and Barrel Design
• 180° clockable mounting
• Included zinc coated steel mount w/ hardware
• Dual baffle internal design
• High Flow Made in the USA Filter
• Comes with bottom pet cock
• Dual -10 O-ring ( ORB ) outlets

Note: Due to design this will not facilitate dual -12AN hose ends connecting to can.  We suggest any connections needing -12 run two individual cans due to demand of flow of entire system.

Reference Sizing Chart for Catch Can: Please note that catch can is "clockable" in mounting.

**Please be gentle with the factory fittings and screwing these into your plastic valve covers.  The tangs that hold these in place are not known to be really strong and you can strip them out if you are not careful!
