Motion Raceworks Transmission Remote Cooler -6AN fitting

Motion Raceworks Transmission Remote Cooler -6AN fitting

Motion Raceworks is known for offering solutions for all styles of vehicles. With a long history in drag and drive we were looking to create a great solution for transmission cooling using some of the best components available.

This transmission cooler is a custom build to our specs. Featuring a PWR tube and fin core combined with a SPAL electric high flow fan and a custom built shroud.

Features

• Built using PWR’s patented plate-and-fin technology for superior heat transfer efficiency and compact performance
• Compact 4 bolt mounting solution
• Spal electric fan produces 590cfm of air movement
• Dramatically extends engine and transmission life
• 6AN inlet size requires no adapters

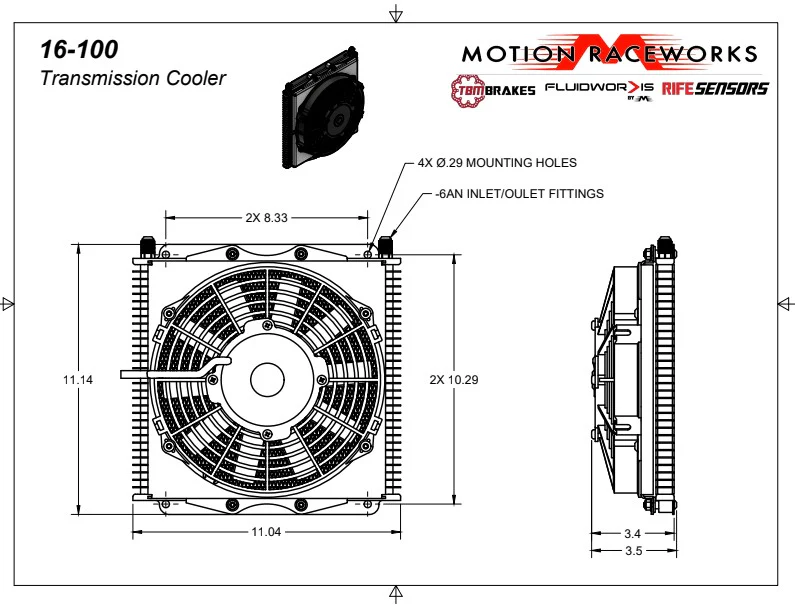

Specifications

• Cooler style:  Plate and Fin
• Inlet size:  -6AN Male
• Outlet size: -6AN Male
• Fan size: 9"
• CFM:  590
• Amp draw: 6-6.6 amps
• Length: 11.1"
• Width 10.3"
• Depth:  3.5"
• Airflow: 10 blade puller / suction fan

See transmission kits to find this cooler bundled with appropriate fittings and line for specific transmissions: Click Here
