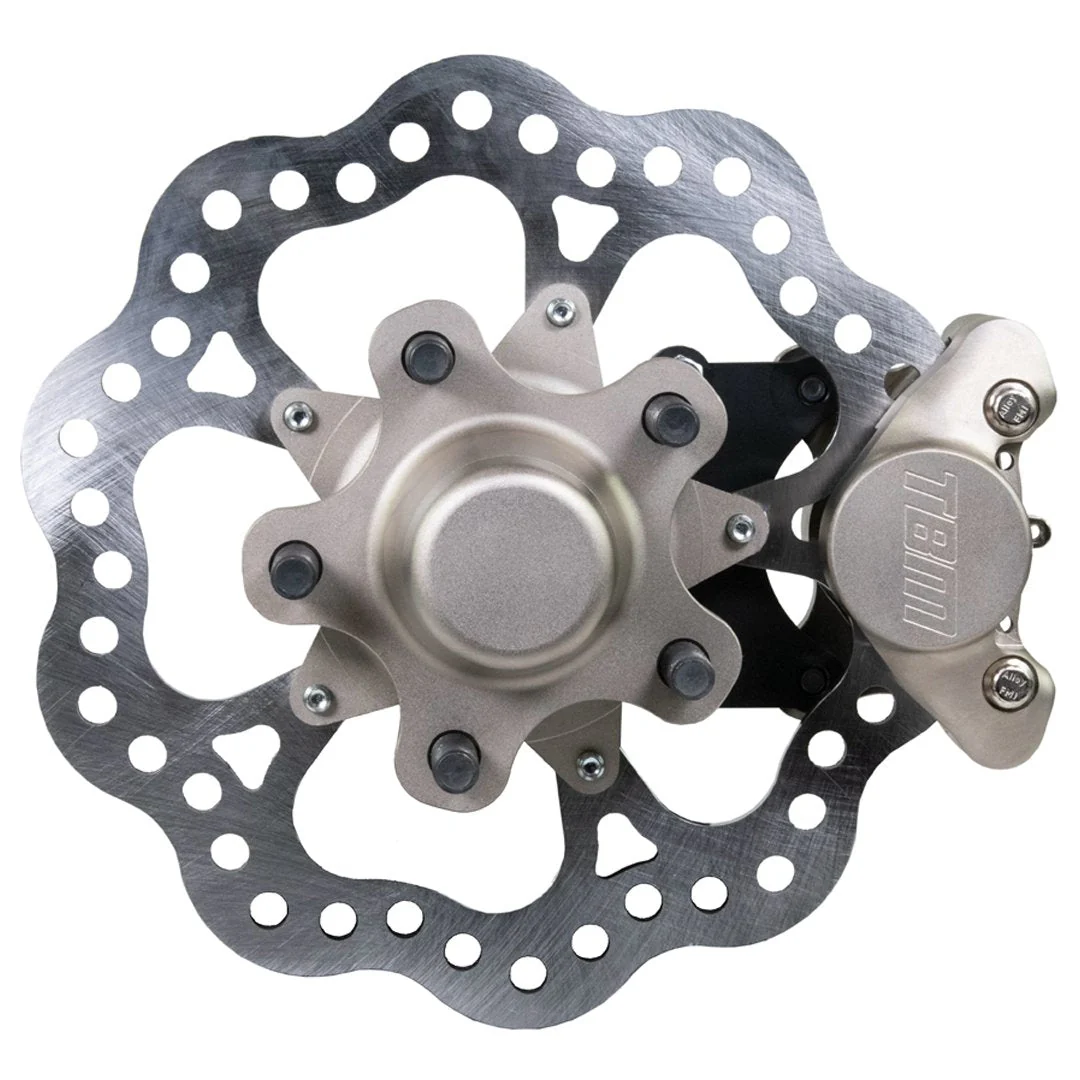

TRZ 325-5 (G-body / S10 ) 1.5" Drop Chromoly Spindle 2 Piston Lightweight Front Brake Kit

TRZ 325-5 (G-body / S10 ) 1.5" Drop Chromoly Spindle 2 Piston Lightweight Front Brake Kit

TRZ 325-5 (G-body / S10 ) 1.5" Drop Chromoly Spindle TBM 2 Piston F1 Lightweight Drag Race Brake Kit 001-0233

*Note: These only work with the P/N 325-5 TRZ Spindle for Gbody / S10. Does not work with factory style spindles.

Installation Instructions

  • F1 2 piston calipers 002-0054SSP-1 / 002-0054SSP-2
  • (2) Revolution rotors 3-10753105525D
  • (2) Sets of Pads #1 Standard F1 Pads 6-1019
  • (2) Caliper Mounting Brackets 16-0232-1 / 16-0232-2
  • (2) Aluminum rotor hats 8-103  5x4.75 Bolt Pattern
  • Mounting Hardware Kit 011-0232

Note: Wheel speed does not work with TRZ Chrome-Moly Spindles


    TBM 2 Piston (F1/DR-1) Front Drag Racing Brake Kits are extremely lightweight and are not suitable for use with factory rear brakes/proportioning. They must be used with a properly installed aftermarket-style 4 piston rear brake kit. We do not recommend 2 piston front brakes for drag vehicles that are over 3400 lbs

    Kit Weight: 20 LBS

    *Please use red Loctite on all rotor bolts*


    We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

    For all TRZ Kit Options/References See This Chart



    ⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
    Select Bolt Pattern
    From $1,479.00
    TRZ 325-5 (G-body / S10 ) 1.5" Drop Chromoly Spindle 2 Piston Lightweight Front Brake Kit—
    $1,479.00
    Product image 1

    Description

    TRZ 325-5 (G-body / S10 ) 1.5" Drop Chromoly Spindle TBM 2 Piston F1 Lightweight Drag Race Brake Kit 001-0233

    *Note: These only work with the P/N 325-5 TRZ Spindle for Gbody / S10. Does not work with factory style spindles.

    Installation Instructions

    • F1 2 piston calipers 002-0054SSP-1 / 002-0054SSP-2
    • (2) Revolution rotors 3-10753105525D
    • (2) Sets of Pads #1 Standard F1 Pads 6-1019
    • (2) Caliper Mounting Brackets 16-0232-1 / 16-0232-2
    • (2) Aluminum rotor hats 8-103  5x4.75 Bolt Pattern
    • Mounting Hardware Kit 011-0232

    Note: Wheel speed does not work with TRZ Chrome-Moly Spindles


      TBM 2 Piston (F1/DR-1) Front Drag Racing Brake Kits are extremely lightweight and are not suitable for use with factory rear brakes/proportioning. They must be used with a properly installed aftermarket-style 4 piston rear brake kit. We do not recommend 2 piston front brakes for drag vehicles that are over 3400 lbs

      Kit Weight: 20 LBS

      *Please use red Loctite on all rotor bolts*


      We recommend using TBM DOT 5.1 Extreme 6 Brake Fluid for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.

      For all TRZ Kit Options/References See This Chart



      ⚠ WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
